Overview

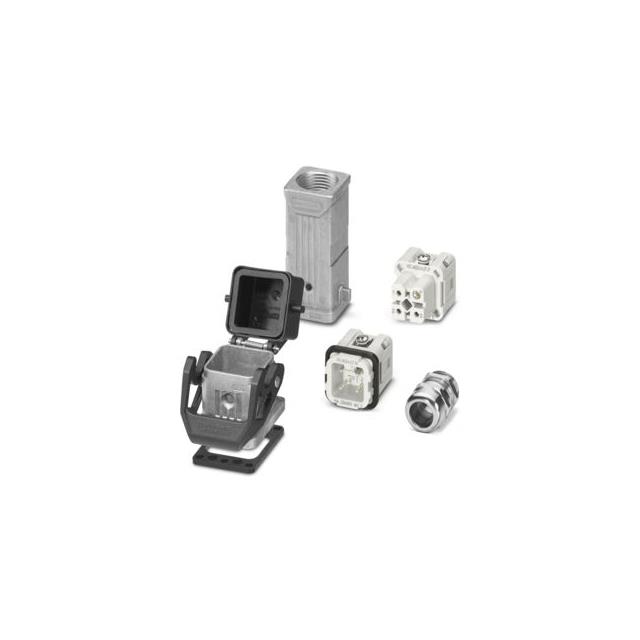

Phoenix Contact part number 1409655 is a Heavy Duty Connector Assembly belonging to the HC Series. This specific unit is a 3-position plug and socket insert kit designed for industrial power applications. It features a D7 sleeve housing with a top-hood and bottom-base configuration, secured via M20 screw connections. The assembly includes an M20 cable gland for secure cable entry. Electrical ratings include a rated voltage of 230 V (III/3) and a maximum operating temperature range from -40°C to +100°C. The connection method utilizes screw terminals, ensuring robust mechanical stability for heavy-duty environments.

Feature Summary

• Heavy duty construction utilizing D7 sleeve housing for reliable performance in demanding industrial settings
• Secure M20 screw-based connection system providing stable electrical contact
• Integrated M20 cable gland ensures effective strain relief and cable management

Applications

• Industrial machinery power distribution
• Control cabinet interconnections
• Heavy duty equipment signal transmission

Procurement Notes

Verify that the required connector set matches the specific HC-KIT-A03-R01 configuration containing the D7 sleeve housing, panel mounting base, and 3-pos insert. Confirm the M20 cable gland specification aligns with your cable diameter requirements. Ensure the rated voltage of 230 V meets your system's electrical safety standards before procurement.

Selection Notes

Select this model when a 3-position heavy duty interface is required within a D7 housing footprint. The M20 screw connection system is suitable for applications needing high mechanical retention. Consider the -40°C to +100°C operating temperature range to ensure compatibility with your environmental conditions. Verify that the top-hood and bottom-base assembly style fits your spatial constraints.

Part Context

This component belongs to Phoenix Contact's HC Series, a widely used family of heavy duty connectors known for durability. Part 1409655 specifically represents a complete connector kit rather than just the insert, including necessary housing and gland components. It complements other HC series products by providing standardized interfaces for power and signal transmission in automation systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
