1409778

Overview

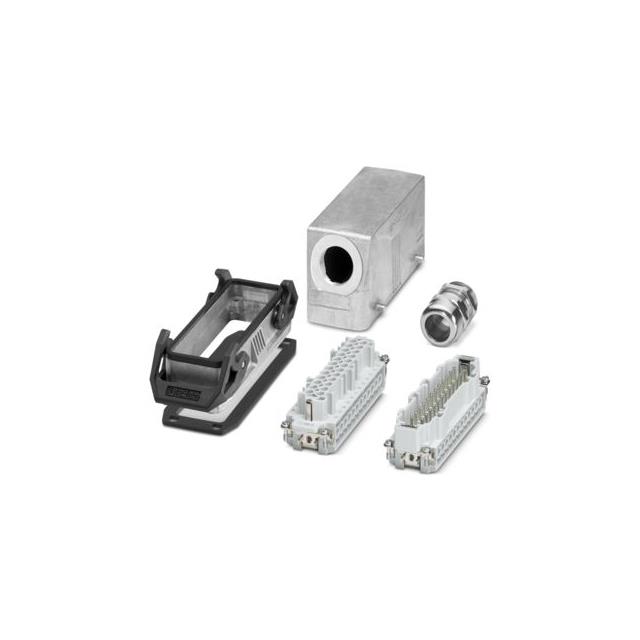

Phoenix Contact part number 1409778 is a Heavy Duty Power Connector Accessory belonging to the HC Series. It functions as a connector set, specifically identified as HC-KIT-B24-R04. The assembly comprises a B24 sleeve housing and panel mounting base paired with a 24-position plug and socket insert. It utilizes an M32 cable gland for secure cable entry. The unit is rated for 500 V voltage and supports 16 A current capacity. This complete set includes both stationary receptacle and wander plug components.

Feature Summary

• Provides a complete connector solution integrating stationary receptacle and wander plug components within a single kit.
• Features a robust B24 sleeve housing and panel mounting base designed for heavy-duty industrial environments.
• Incorporates a 24-position plug and socket insert configuration to facilitate multi-circuit power distribution.
• Utilizes an M32 cable gland system to ensure secure strain relief and cable management.

Applications

• Industrial machinery requiring heavy-duty power connections
• Factory automation systems needing reliable signal and power transmission
• Control cabinet installations utilizing standard HARTING-style interfaces

Procurement Notes

Verify that the required configuration matches the HC-KIT-B24-R04 specification exactly. Confirm compatibility with existing B24 series housings and M32 cable glands. Ensure the 24-position contact arrangement aligns with circuit requirements. Check voltage ratings against operational loads to maintain safety margins. Validate physical dimensions against panel cutout specifications before procurement.

Selection Notes

Select this component when a pre-assembled heavy-duty connector set is preferred over individual parts. The B24 size offers a balance between current capacity and compact footprint. The 24-position layout suits applications requiring multiple independent circuits. Consider the integrated wander plug design for flexible connection scenarios. Verify environmental sealing requirements match the specific installation conditions.

Part Context

This accessory belongs to Phoenix Contact's HeavyCON B series, designed for demanding industrial applications. The HC-KIT designation indicates a complete kit rather than a single component. It serves as a critical interface element in power distribution networks. The product integrates mechanical housing with electrical contacts for immediate deployment.

Replacement Considerations

Compatible substitutes include other HC-KIT-B24-R04 variants from Phoenix Contact. Cross-reference with HARTING Han-Modular equivalents if interface standards allow. Verify pin count and housing size compatibility before substitution. Ensure voltage and current ratings meet or exceed original specifications.

FAQ

What is the specific composition of the HC-KIT-B24-R04?

The kit consists of a B24 sleeve housing, a panel mounting base, a 24-position plug insert, a 24-position socket insert, and an M32 cable gland.

Does this part include both male and female connectors?

Yes, it is a complete set containing both a stationary receptacle (socket) and a wander plug (pin) configuration.
