1411820

Overview

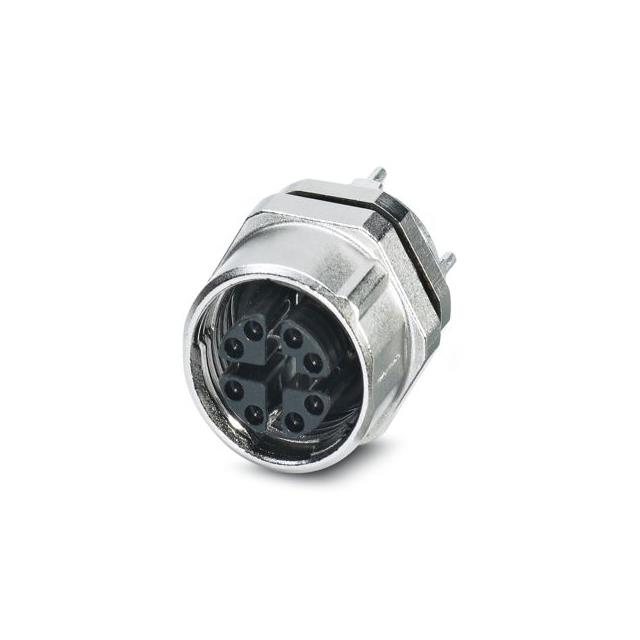

Phoenix Contact part number 1411820 is a circular connector component designed for industrial power applications. It features an M12 connector interface with 8 contacts configured as a female socket. The unit provides IP65 and IP67 ingress protection ratings, ensuring reliability in demanding environments. It supports asynchronous and three-phase motors up to 7.5kW. The connector is available in configurations with 3 to 8 conductors, including shielded and unshielded options.

Feature Summary

• Provides compact and reliable power connection capabilities for industrial motor applications
• Features front-mounting design with M12 connector interface and female socket configuration
• Offers robust ingress protection against dust and water immersion

Applications

• Asynchronous motor connections
• Three-phase motor power supply
• Industrial control cabinet wiring

Procurement Notes

Verify the specific conductor count and shielding requirements before ordering, as the product line offers variations from 3 to 8 conductors. Confirm that the M12 female socket configuration matches the mating male plug specifications. Ensure the selected variant meets the required IP65 or IP67 rating for the intended installation environment. Cross-reference the 7.5kW motor limit with actual load data.

Selection Notes

Select this component when a front-mount M12 circular connector is required for power distribution to motors. The 8-contact layout accommodates multiple power and signal lines within a single interface. Consider the shielding option if electromagnetic interference is a concern in the application. Verify compatibility with existing Phoenix Contact SACC series accessories if housing is needed separately.

Part Context

This component belongs to the Phoenix Contact circular connector portfolio, which includes various interfaces such as M12, D-Sub, and USB. The product line emphasizes reliable connectivity for copper cable data and power transmission. Part 1411820 specifically addresses power connection needs rather than high-speed data transmission, distinguishing it from Ethernet or fiber optic solutions in the same catalog.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
