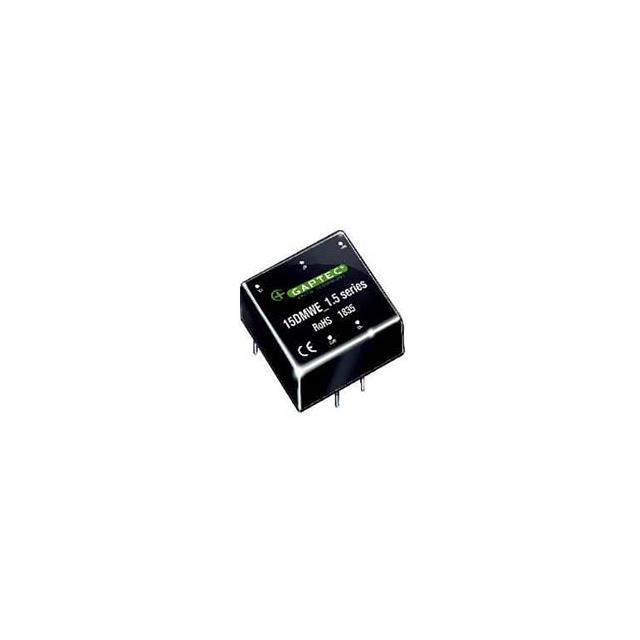

15DMWE_1212S1.5

15DMWE_1212S1.5 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC INDUSTRIAL. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 15DMWE_1212S1.5

• Description：DC-DC INDUSTRIAL
• Series：15DMWE_1.5 (15W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.25A
• Power (Watts)：15 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 95°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 15DMWE_1212S1.5
