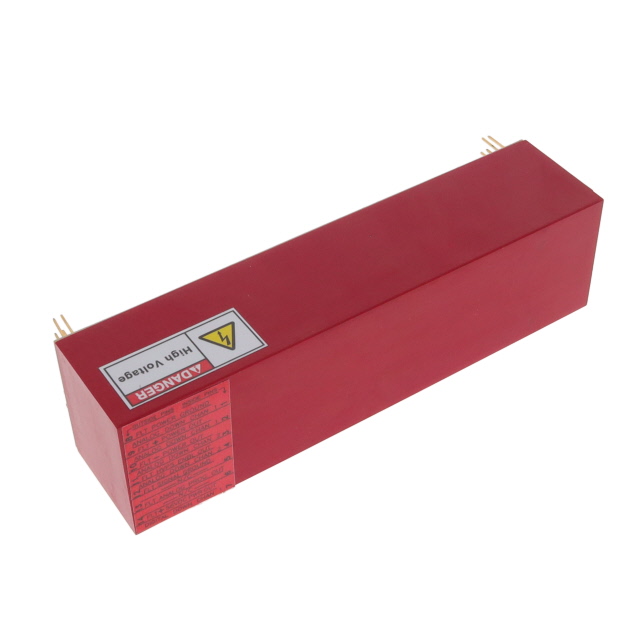

15FL12-12W-I/O-RB

15FL12-12W-I/O-RB is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ULTRAVOLT / Advanced Energy. Its product description is FL-SERIES FLOATING-HOT-DECK POWE. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 15FL12-12W-I/O-RB

• Description：FL-SERIES FLOATING-HOT-DECK POWE
• Series：FL
• Mfr：ULTRAVOLT / Advanced Energy
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：3
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：16V
• Voltage - Output 1：12V
• Voltage - Output 2：-15V
• Voltage - Output 3：5.6V
• Voltage - Output 4：-
• Current - Output (Max)：1A, 10mA, 10mA
• Power (Watts)：12 W
• Voltage - Isolation：15 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-20°C ~ 55°C
• Efficiency：-
• Mounting Type：Through Hole
• Package / Case：28-DIP Module
• Size / Dimension：5.70" L x 1.50" W x 1.30" H (144.8mm x 38.1mm x 33.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cUL, UL
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 15FL12-12W-I/O-RB
