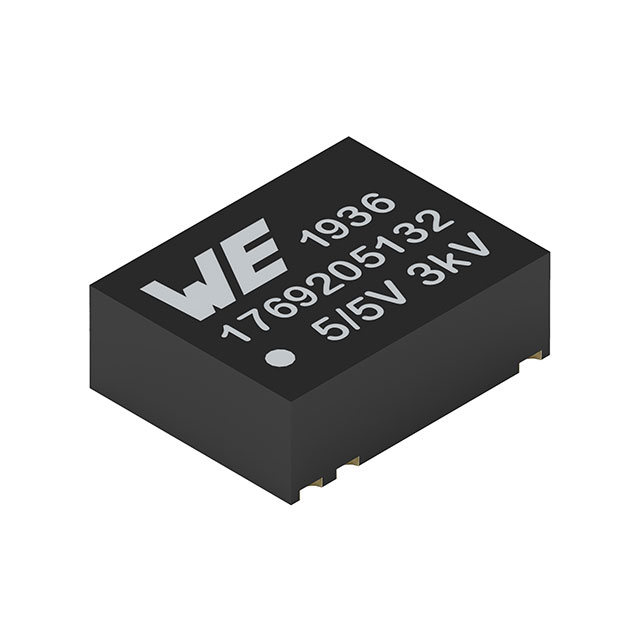

1769205132

1769205132 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is WPME-FIMM FIXED ISOLATED MICROMO. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 1769205132

• Description：WPME-FIMM FIXED ISOLATED MICROMO
• Series：MagI³C, FIMM
• Mfr：Würth Elektronik
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 125°C (With Derating)
• Efficiency：90.50%
• Mounting Type：Surface Mount
• Package / Case：7-BLGA Module
• Size / Dimension：0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm)
• Supplier Device Package：7-LGA (9x7)
• Control Features：-
• Approval Agency：cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 1769205132
