200HXG1000MEFCSN25X45

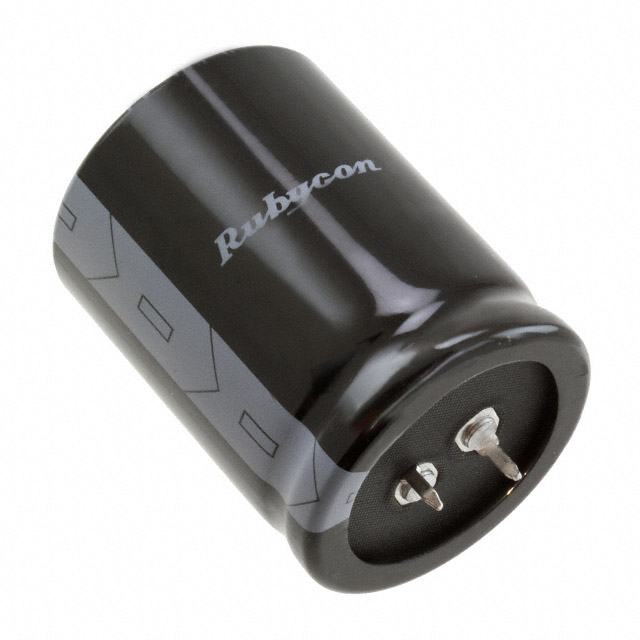

200HXG1000MEFCSN25X45 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Rubycon. Its product description is CAP ALUM 1000UF 20% 200V SNAP TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for 200HXG1000MEFCSN25X45

• Description：CAP ALUM 1000UF 20% 200V SNAP TH
• Series：HXG
• Mfr：Rubycon
• Package：Bulk
• Capacitance：1000 µF
• Tolerance：±20%
• Voltage - Rated：200 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：3000 Hrs @ 105°C
• Operating Temperature：-25°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：-
• Ripple Current @ High Frequency：-
• Lead Spacing：0.394" (10.00mm)
• Size / Dimension：0.984" Dia (25.00mm)
• Height - Seated (Max)：1.850" (47.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can - Snap-In
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for 200HXG1000MEFCSN25X45
