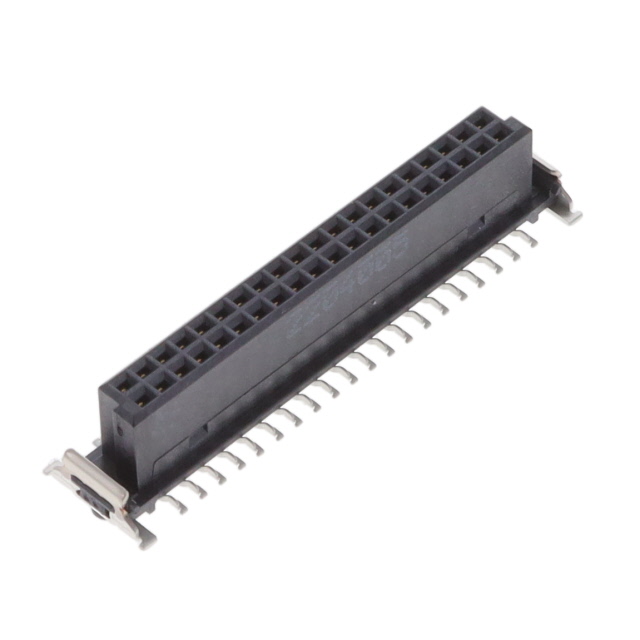

204632-E

204632-E is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity Erni. Its product description is 40-PIN, VERTICAL, SMT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 204632-E

• Description：40-PIN, VERTICAL, SMT
• Series：SMC
• Mfr：TE Connectivity Erni
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.246" (6.25mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide, Pick and Place, Solder Retention
• Current Rating (Amps)：1.7A per Contact
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 204632-E
