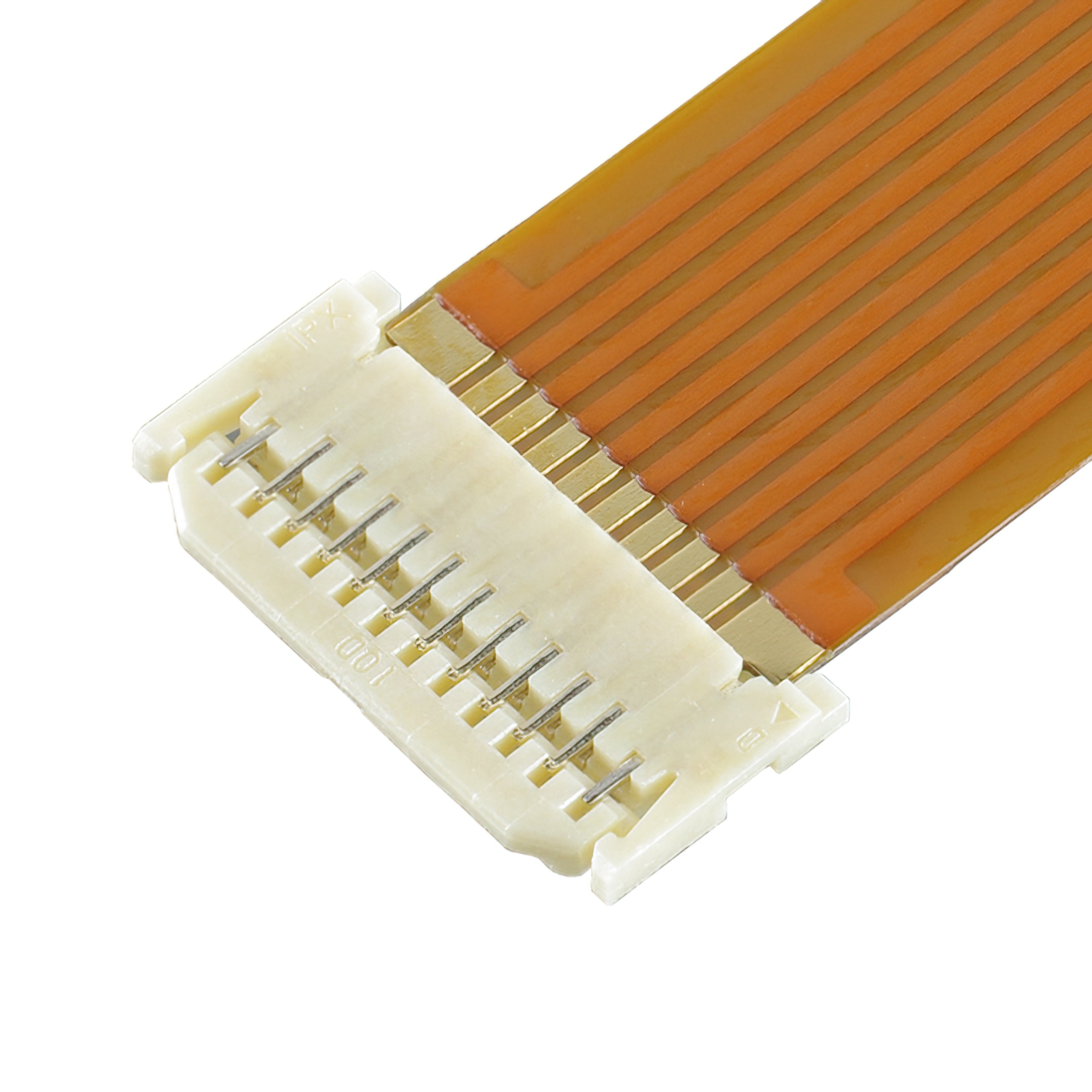

20588-008E-01

20588-008E-01 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists I-PEX. Its product description is CONN FPC TOP 8POS 0.4MM SMD R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 20588-008E-01

• Description：CONN FPC TOP 8POS 0.4MM SMD R/A
• Series：MINIFLEX® 4-ST
• Mfr：I-PEX
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：8
• Pitch：0.016" (0.40mm)
• Termination：Solder
• FFC, FCB Thickness：0.12mm
• Height Above Board：0.020" (0.50mm)
• Locking Feature：Flip Lock, Backlock
• Cable End Type：Notched
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：Liquid Crystal Polymer (LCP)
• Features：Solder Retention
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0
