2063-07-01-P2

Headers, Receptacles, Female Sockets Overview

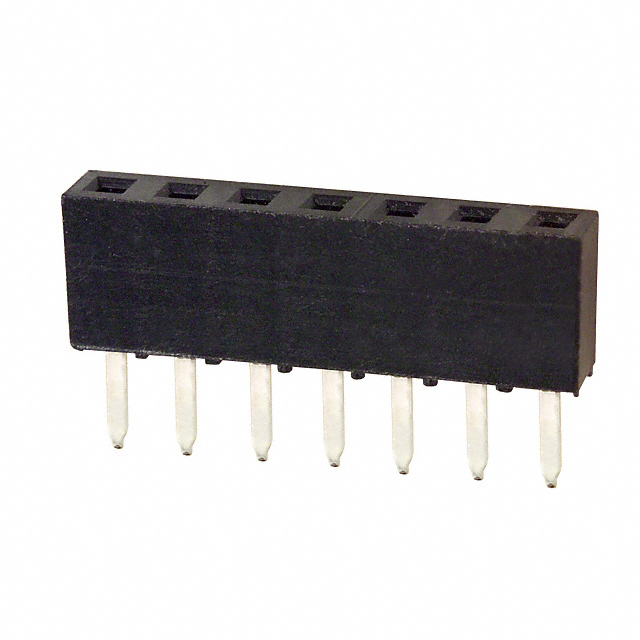

The NorComp 2063-07-01-P2 is a 7-position board connector receptacle designed for through-hole mounting. It features a vertical orientation with a 2.00 mm (0.079 inch) terminal pitch. The contacts are constructed from copper alloy and finished with gold flash plating to ensure reliable signal transmission. This component belongs to the general-purpose header series, offering a single-row configuration suitable for standard PCB integration.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical single-row receptacle design for direct board insertion
• Gold flash contact plating for enhanced conductivity and corrosion resistance
• Through-hole termination method ensuring secure mechanical attachment

Headers, Receptacles, Female Sockets Applications

• General purpose electronic circuit interconnections
• Board-to-board connection systems requiring vertical alignment
• Consumer electronics internal wiring harnesses

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific suffix P2 aligns with the required RoHS compliance status and packaging format. Confirm the gold flash finish specification matches the application's conductivity requirements. Ensure the through-hole footprint dimensions correspond exactly to the target PCB layout before ordering.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a vertical, single-row receptacle with a 2mm pitch is required. The gold-plated copper alloy contacts make it suitable for applications demanding low contact resistance. Consider the through-hole installation method if surface-mount alternatives are not feasible for the mechanical constraints.

Headers, Receptacles, Female Sockets Part Context

This part is part of NorComp's broader range of board connectors, specifically within the 2063 series. It serves as a complementary counterpart to male pin headers, facilitating complete connector assemblies. The 7-position variant provides a balanced solution for moderate I/O density requirements in compact electronic designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other 7-position, 2.00mm pitch vertical receptacles from NorComp such as the 2063-07-01-RP2. Cross-manufacturer replacements require strict verification of pitch, row count, and mounting style compatibility.
