20879-030E-01

Headers, Receptacles, Female Sockets Overview

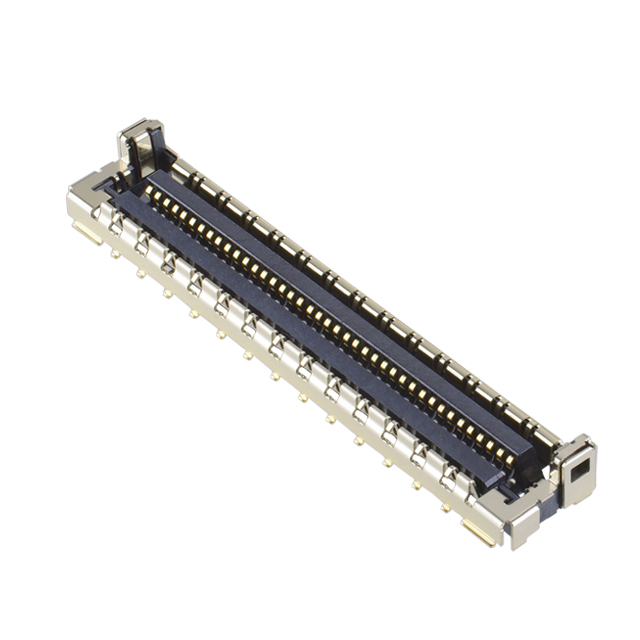

The I-PEX 20879-030E-01 is a CABLINE®-UM series receptacle connector featuring 30 positions with a 0.40mm pitch. Designed for surface mount, right-angle installation, it utilizes gold-plated contacts and an LCP insulator rated UL94 V-0. The component supports a maximum voltage of 100VAC and operates within a temperature range of -40°C to 105°C. It includes a latch bracket and fixed solder tails for secure board attachment.

Headers, Receptacles, Female Sockets Feature Summary

• CABLINE®-UM micro-coaxial receptacle assembly designed for high-speed signal integrity
• Right-angle surface mount termination with fixed solder tails for reliable PCB connection
• Gold-plated contacts ensure consistent electrical performance in shielded applications

Headers, Receptacles, Female Sockets Applications

• High-resolution display interfaces
• MIPI camera module connections
• Endoscopic medical equipment
• Remote telemedicine systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official I-PEX documentation to confirm mechanical orientation and contact plating specifications. Ensure compatibility with mating cable assemblies from the same CABLINE®-UM family. Confirm that the right-angle surface mount configuration aligns with the target PCB layout requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when designing space-constrained systems requiring high-density interconnects for video or data transmission. The 0.40mm pitch allows for compact layouts while maintaining signal integrity through integrated shielding. Consider the right-angle form factor for vertical clearance limitations and verify thermal resistance ratings against soldering processes.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the CABLINE®-UM family, which specializes in micro-coaxial solutions for portable electronics. It complements other I-PEX interconnect products by providing specialized high-frequency connectivity options. The series is engineered to support modern demands for miniaturization without compromising electromagnetic interference protection or signal quality in dense circuit designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official I-PEX substitution guides for verified alternatives. Cross-reference pin counts and pitch dimensions to ensure mechanical fit. Verify that any substitute maintains equivalent shielding characteristics and thermal performance standards required for the original application environment.
