2199119-6

Edgeboard Connectors Overview

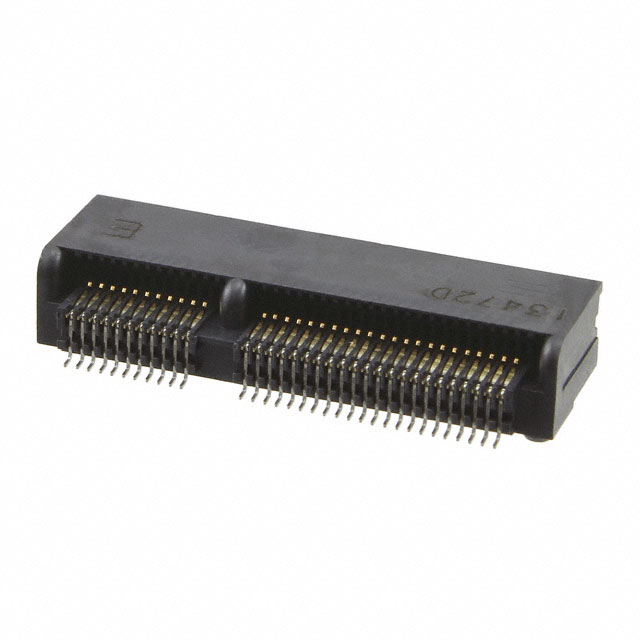

The TE Connectivity AMP Connectors part number 2199119-6 is a female edge card connector designed for M.2 (NGFF) Mini Card applications. It features 67 positions arranged in two rows with a 0.020 inch (0.50mm) pitch. The contacts are made of copper alloy and finished with gold plating to ensure reliable signal transmission. This component utilizes a surface mount, right-angle termination method for PCB integration. The housing is constructed from black thermoplastic material, providing structural integrity within the specified operating temperature range of -40°C to 80°C.

Edgeboard Connectors Feature Summary

• Designed specifically for M.2 (NGFF) Mini Card form factors
• Features board guide rails for precise alignment during insertion
• Utilizes right-angle surface mount technology for compact PCB layouts
• Employs gold-plated copper alloy contacts for corrosion resistance

Edgeboard Connectors Applications

• M.2 SSD storage modules
• Wi-Fi and Bluetooth wireless cards
• LTE and cellular connectivity modules
• IoT edge computing devices

Edgeboard Connectors Procurement Notes

Verify that the specific suffix matches the required contact plating thickness and housing variant, as minor manufacturing updates may exist. Confirm RoHS compliance status for the specific production batch if environmental regulations are strict. Ensure the ordering quantity aligns with the manufacturer's standard packaging specifications to avoid partial reel issues. Cross-reference the datasheet revision date to confirm compatibility with current design requirements.

Edgeboard Connectors Selection Notes

Select this connector when a high-density interface is required for M.2 form factor cards. The right-angle orientation facilitates space-constrained designs where vertical clearance is limited. Verify that the PCB footprint matches the provided CAD models exactly. Consider the thermal performance limits of the thermoplastic insulation when designing for high-power adjacent components.

Edgeboard Connectors Part Context

This component belongs to the broader family of M.2 interconnect solutions manufactured by TE Connectivity. It serves as a critical interface between the host motherboard and peripheral expansion cards. The design supports the electrical and mechanical standards defined for next-generation form factors, ensuring interoperability across various industrial and consumer electronics platforms.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers: 2199119-7, 1-2199119-6.
