22022025

Headers, Receptacles, Female Sockets Overview

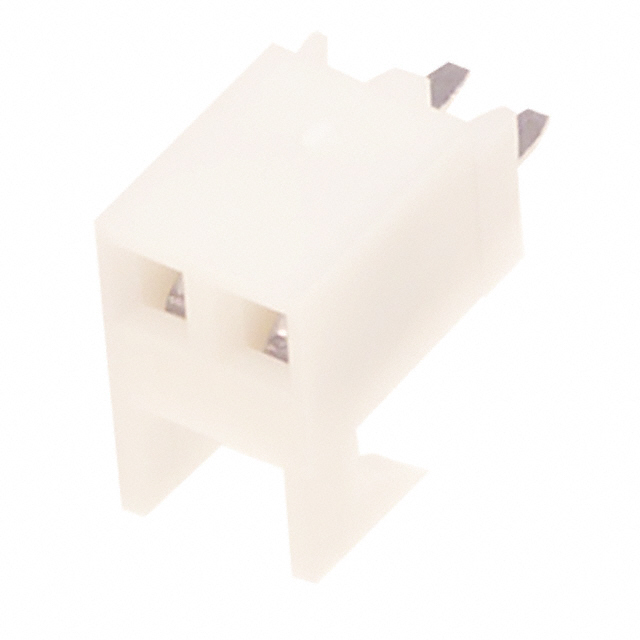

The Molex 22022025 is a KK 254 series PCB connector receptacle featuring top entry and end-to-end stackable design. It provides 2 circuits with a 2.54mm pitch and utilizes tin plating on contacts. The component includes hooks for secure retention during assembly.

Headers, Receptacles, Female Sockets Feature Summary

• Top entry configuration for vertical PCB mounting
• End-to-end stackable architecture for space optimization
• Integrated hooks for mechanical stability

Headers, Receptacles, Female Sockets Applications

• General electronic circuit interconnections
• Industrial control systems
• Consumer electronics assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm contact plating and packaging details. Ensure compatibility with mating header components from the same series. Check for any updated environmental compliance certifications prior to final procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring reliable through-hole connections with limited board space. The stackable feature allows for increased density without sacrificing signal integrity. Confirm voltage ratings align with system requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the KK 254 family, known for versatile board-to-board and wire-to-board solutions. The series supports various termination styles and circuit counts, making it suitable for diverse industrial and commercial electronic designs requiring robust connectivity.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Molex documentation for direct substitutes. Verify pin count, pitch, and housing dimensions when evaluating alternative connectors to ensure mechanical and electrical compatibility.
