Headers, Receptacles, Female Sockets Overview

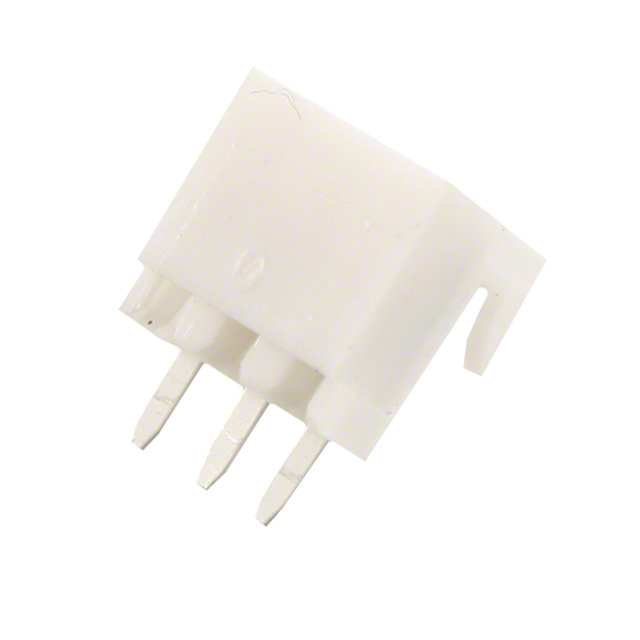

Molex KK 254 PCB Connector, Part Number 22022035, is a 3-circuit receptacle designed for top-entry board-to-board applications. It features a 2.54 mm pitch and utilizes tin (Sn) plating on termination interfaces. The component supports end-to-end stacking capabilities and includes integrated hooks for secure assembly. Constructed with polyamide resin, it ensures reliable electrical connections in standard electronic environments.

Headers, Receptacles, Female Sockets Feature Summary

• Top-entry receptacle design for vertical PCB mounting
• End-to-end stackable configuration for space optimization
• Integrated locking hooks to secure mating connectors

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• Vertical PCB mounting assemblies
• Stacked circuit module integration

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number 22022035 against official Molex documentation to confirm compatibility with mating headers. Ensure that the required stacking height and hook engagement mechanisms align with the target assembly design specifications before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, vertically mounted connector with stacking capability is required. The 2.54 mm pitch suits general signal routing, while the tin plating offers cost-effective conductivity. Verify that the three-circuit count meets the exact design requirements without needing additional rows.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the KK 254 series, a widely used line of PCB connectors known for their versatility in general-purpose electronics. The series provides various circuit counts and configurations, establishing a standardized interface for board-to-board connectivity across multiple industrial and consumer applications.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes within the same series include part numbers such as 22-02-2035, which share identical pitch and mechanical form factors. Cross-reference official Molex cross-reference guides to ensure functional equivalence regarding pinout and physical dimensions.
