22022065

Headers, Receptacles, Female Sockets Overview

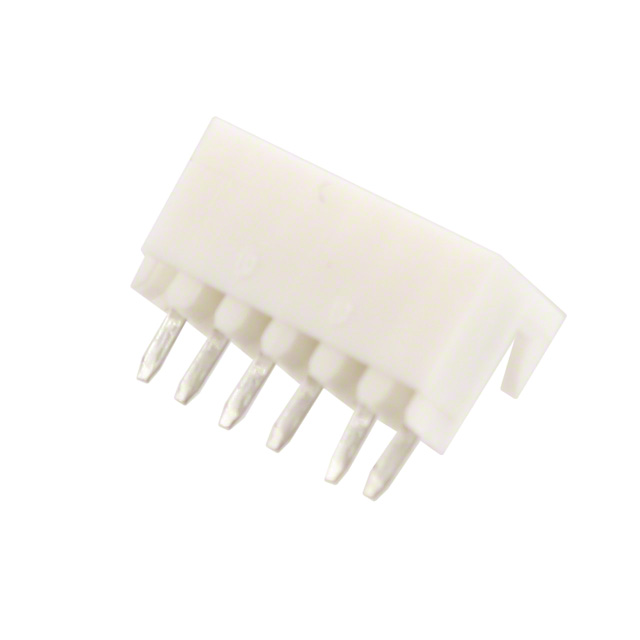

Molex part number 22022065 is a KK 254 PC Board Connector designed for top entry and end-to-end stackable configurations. It features six circuits with a 2.54 mm pitch and utilizes tin (Sn) plating on the contacts. The connector includes hooks to facilitate secure stacking during assembly. This through-hole component is classified as active within the manufacturer's product portfolio, providing a reliable interconnection solution for printed circuit board applications.

Headers, Receptacles, Female Sockets Feature Summary

• Supports top entry and end-to-end stackable mounting configurations
• Features six circuits with a 2.54 mm pitch
• Includes integrated hooks for secure stacking
• Utilizes tin plating on contact surfaces

Headers, Receptacles, Female Sockets Applications

• General-purpose printed circuit board interconnections
• Stacked connector assemblies requiring vertical alignment
• Electronic equipment utilizing through-hole termination methods

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and pitch requirements against the target design specifications before procurement. Confirm that the tin plating finish aligns with the intended environmental conditions and soldering processes. Ensure the through-hole footprint matches the PCB layout constraints. Cross-reference the active status with current manufacturing availability to prevent supply chain disruptions during production phases.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a six-circuit through-hole connector with a 2.54 mm pitch is required. The end-to-end stackable design is suitable for applications needing multiple rows or vertical expansion. The tin plating offers standard corrosion resistance. Verify that the mechanical hook feature meets the structural stability needs of the assembly without requiring additional fastening mechanisms.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the KK 254 series, which provides standardized spacing for various electronic interconnect needs. The series supports diverse termination styles and circuit counts. As an active product, it remains available for new designs. The specific model integrates mechanical stacking aids to simplify multi-row assembly processes in compact electronic enclosures.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are documented for this specific configuration.
