22162080

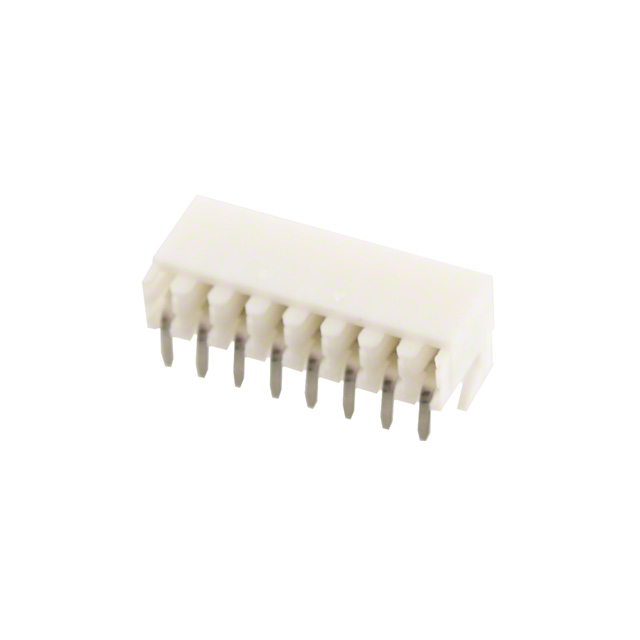

22162080 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 8POS 0.1 GOLD EDGE MNT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 22162080

• Description：CONN RCPT 8POS 0.1 GOLD EDGE MNT
• Series：KK254, 4455
• Mfr：Molex
• Package：Tray
• Connector Type：Receptacle
• Contact Type：Female, Cat Ear
• Style：Board to Board or Cable
• Number of Positions：8
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Board Edge, Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Insulation Color：White
• Insulation Height：0.185" (4.70mm)
• Contact Length - Post：0.132" (3.35mm)
• Operating Temperature：-40°C ~ 80°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Hooks
• Current Rating (Amps)：2.5A
• Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for 22162080
