Headers, Receptacles, Female Sockets Overview

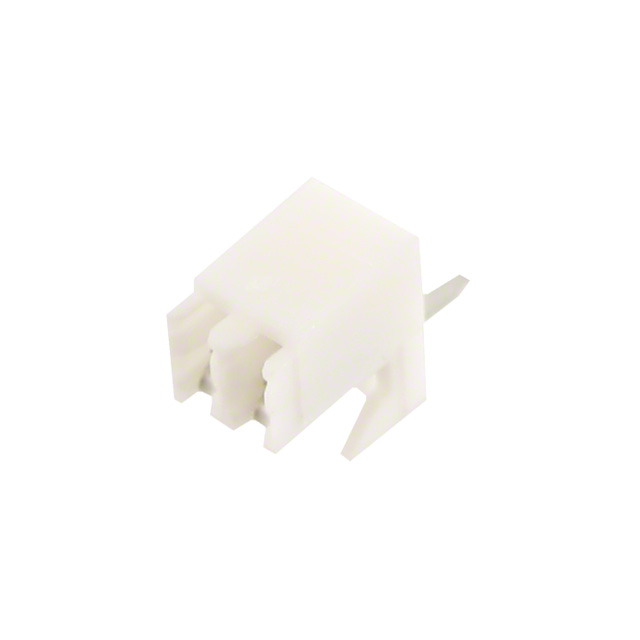

The Molex 22173022 is a board-to-board connector component designed for electronic interconnection applications. It features a female receptacle configuration with two contacts arranged in a single row. The connector utilizes a straight orientation and employs a solder terminal interface for secure PCB mounting. The design incorporates a 0.1-inch pitch specification, ensuring standardized spacing between contact points. This specific part number represents a through-hole termination style suitable for reliable signal transmission in compact electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Female receptacle configuration for mating with male headers
• Straight orientation for standard board stacking or side-entry connections
• Solder terminal interface for permanent PCB attachment

Headers, Receptacles, Female Sockets Applications

• Consumer electronics internal interconnections
• Industrial control board assembly
• Data communication equipment modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact pin count and pitch against the official Molex datasheet for part number 22173022 before procurement. Ensure compatibility with mating header components regarding orientation and termination type. Confirm that the soldering process parameters align with the thermal specifications of the connector materials to prevent damage during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a low-profile, two-contact female header is required for direct board-to-board or wire-to-board integration. Consider the 0.1-inch pitch constraint and through-hole soldering requirements. Evaluate space limitations on the PCB layout to ensure the straight form factor fits within the designated footprint without interfering with adjacent components.

Headers, Receptacles, Female Sockets Part Context

Molex produces a wide range of interconnect solutions including board-to-board, wire-to-board, and fiber optic connectors. The 22173022 falls within their general board connector portfolio, which supports various industries such as automotive, industrial automation, and consumer devices. Molex emphasizes reliability and precision engineering across its product lines to meet diverse connectivity needs.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Molex documentation for verified substitute part numbers. Generic equivalents may not match the precise 0.1-inch pitch or contact configuration. Ensure any replacement maintains the same female polarity and straight orientation to guarantee mechanical and electrical compatibility with existing designs.
