22173062

Headers, Receptacles, Female Sockets Overview

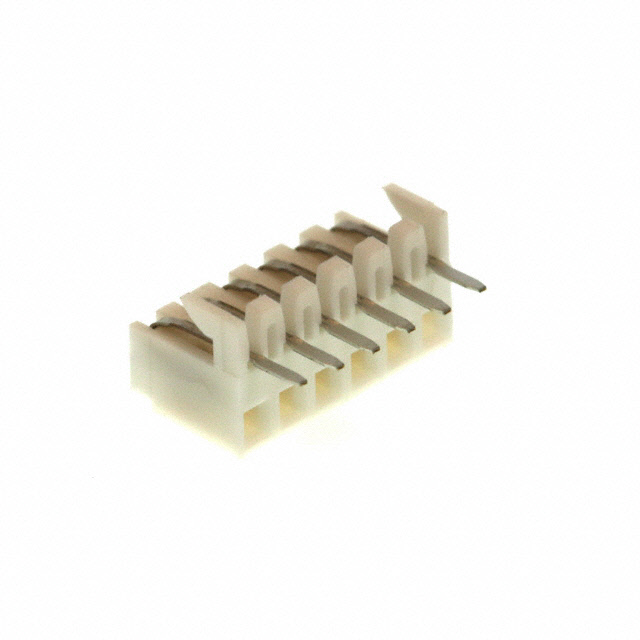

Molex part number 22173062 is a socket assembly header belonging to the 4455 series. It features a 6-position configuration with a 2.54 mm (0.1 in) pitch. The connector utilizes through-hole termination for PCB mounting and includes bottom entry design characteristics.

Headers, Receptacles, Female Sockets Feature Summary

• Socket assembly header configuration
• Through-hole PCB termination method
• Bottom entry connector design

Headers, Receptacles, Female Sockets Applications

• General electronic circuit interconnection
• PCB-to-wire or PCB-to-PCB signal routing
• Consumer electronics assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact datasheet revision and pinout diagram before integration. Confirm that the 6-position layout matches the target footprint. Ensure the 2.54 mm pitch aligns with mating components. Check for any specific RoHS compliance documentation required by your region.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, 6-pin through-hole solution is required. The 2.54 mm pitch ensures compatibility with standard breadboard and prototyping systems. Consider the bottom entry feature if space constraints exist above the board surface.

Headers, Receptacles, Female Sockets Part Context

This component is part of Molex's broader portfolio of headers and sockets. It falls under the category of board-to-board or wire-to-board connectors used in commercial and industrial applications. The 4455 series provides reliable electrical connections for various electronic assemblies.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Molex official resources for cross-reference information.
