22182051

Headers, Receptacles, Female Sockets Overview

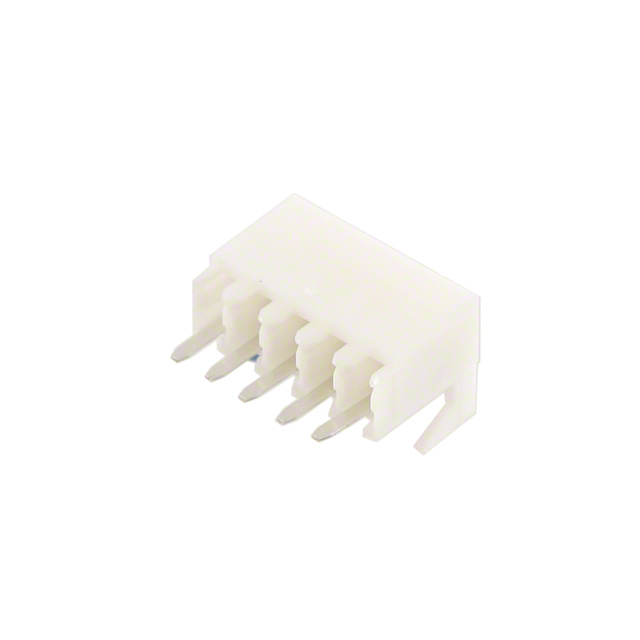

Molex part number 22182051 is a PCB header and receptacle component belonging to the 4455 series. It functions as a compact 1mm-pitch wire-to-board connector designed for high performance and durability in harsh conditions. The connector supports power delivery of up to 864W to peripheral devices, adhering to defined standards. This specific component type facilitates reliable electrical interconnections within electronic assemblies requiring robust signal integrity and thermal management capabilities.

Headers, Receptacles, Female Sockets Feature Summary

• Compact 1mm pitch design for space-constrained applications
• High power handling capability supporting up to 864W
• Engineered for durability in harsh operating environments

Headers, Receptacles, Female Sockets Applications

• Peripheral device interconnection
• Harsh condition electronic assemblies
• High-performance wire-to-board connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the exact pin count and orientation against the official Molex datasheet for part 22182051 before procurement. Confirm that the 1mm pitch and 864W power rating align with your system's thermal and electrical requirements. Ensure compatibility with mating receptacles or cables from the same 4455 series family to maintain connection integrity and avoid mechanical mismatch issues during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 1mm pitch wire-to-board solution is required for high-power applications up to 864W. Consider its suitability for harsh environments where durability is critical. Evaluate the physical footprint constraints against the compact design benefits. Ensure the application does not exceed the specified power limits to guarantee long-term reliability and safe operation within the electronic system.

Headers, Receptacles, Female Sockets Part Context

The 22182051 belongs to the Molex 4455 series, which focuses on compact, high-performance interconnects. This series addresses the need for dense wiring solutions in modern electronics. The component represents Molex's engineering approach to balancing high power capacity with miniaturization, catering to industries demanding reliable connections in challenging operational settings.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official Molex replacement guide for verified substitutes. Cross-reference pin counts, pitch dimensions, and current ratings to ensure functional equivalence. Verify that any alternative component meets the same harsh environment durability standards and power handling specifications as the original 22182051 part.
