2300LL-100-H-RC

Fixed Inductors Overview

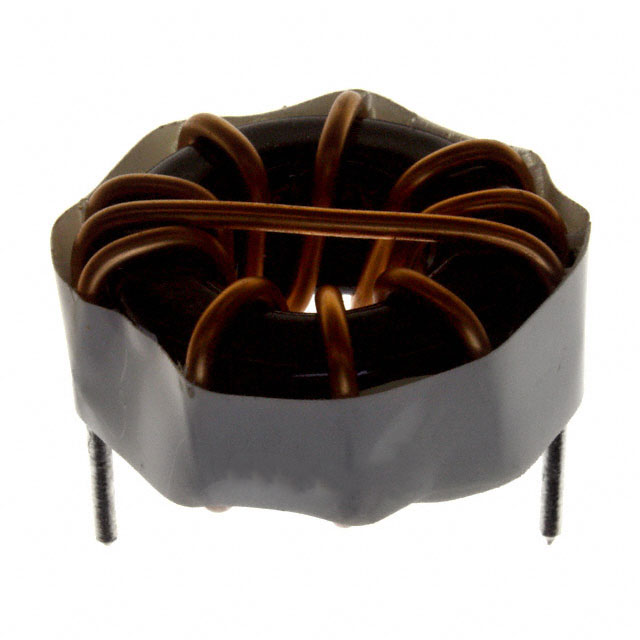

The Bourns Inc. 2300LL-100-H-RC is a leaded power inductor from the 2300LL series, featuring a horizontal toroidal ferrite core design. It provides an inductance of 10 µH with a tolerance of 20%. The component supports a maximum DC current of 20.8 A and exhibits a maximum DC resistance of 4 mOhms. It operates within a temperature range of -55°C to +200°C. The unit utilizes radial leads for PCB mounting and measures 16.51 mm in width and 32.512 mm in diameter.

Fixed Inductors Feature Summary

• Horizontal mount toroidal configuration for low core loss performance
• High current handling capability suitable for demanding power applications
• Ferrite core construction optimized for efficiency

Fixed Inductors Applications

• High current power supply circuits
• Power factor correction systems
• General industrial power delivery

Fixed Inductors Procurement Notes

Verify the specific suffix designation to confirm the mounting orientation matches the required board layout. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure thermal management strategies align with the specified operating temperature limits during high-current operation.

Fixed Inductors Selection Notes

Select this component when horizontal mounting space constraints are present alongside requirements for high saturation current. Compare against vertical variants if different footprint orientations are needed. Validate that the 10 µH value meets the circuit's filtering or energy storage specifications without exceeding the 20.8 A current rating.

Fixed Inductors Part Context

This part belongs to the 2300LL series of low core loss, high current toroid inductors manufactured by Bourns. The series offers various inductance values and mounting styles, including horizontal and vertical options, designed for robust performance in power electronics environments.

Fixed Inductors Replacement Considerations

Consider the 2300LL-100-V-RC for identical electrical characteristics but with a vertical mounting orientation. Other series members within the 2300LL family may provide alternative inductance values while maintaining similar physical dimensions and current capabilities.
