2362375-2

Edgeboard Connectors Overview

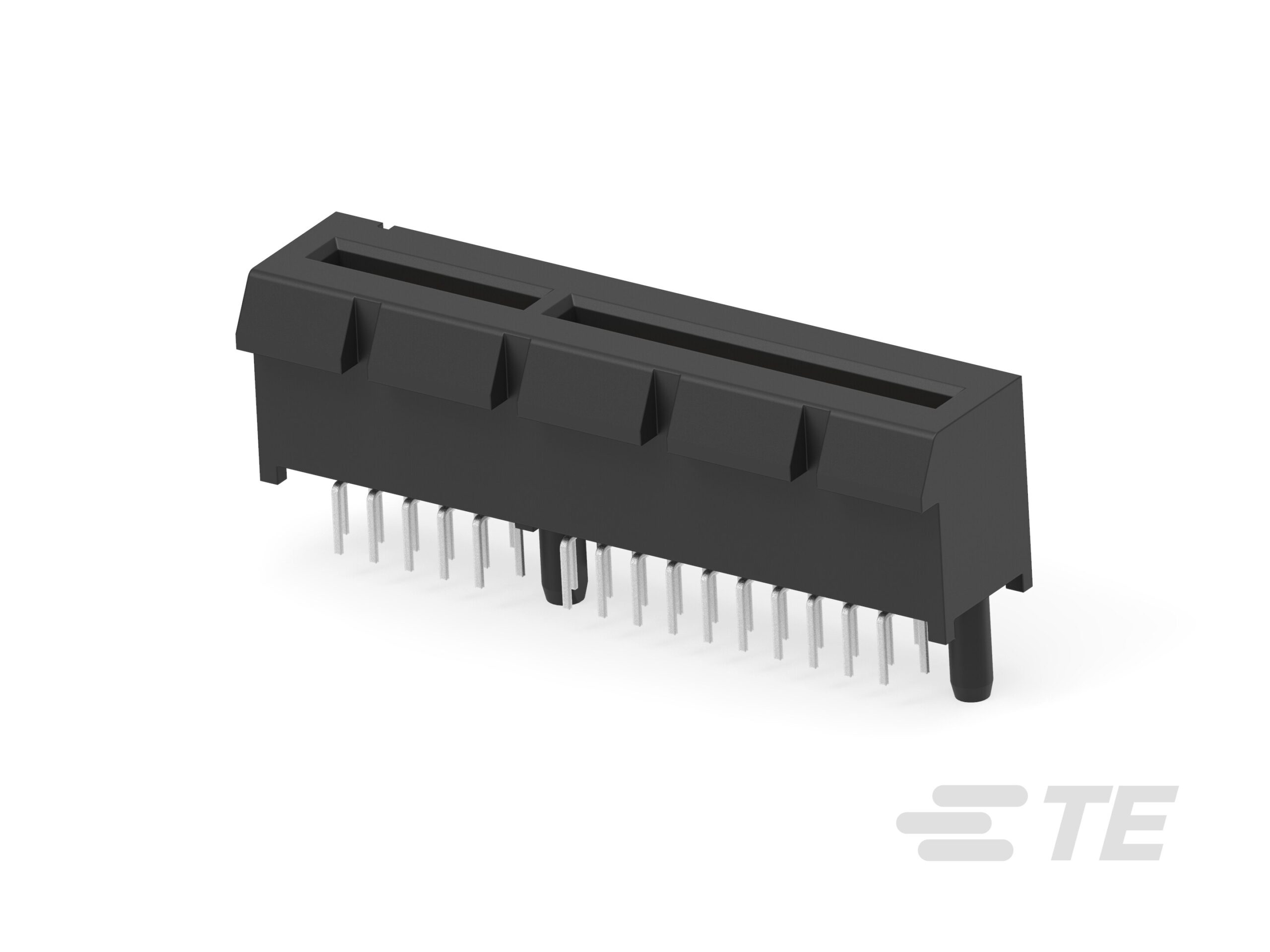

The TE Connectivity AMP Connectors part number 2362375-2 is a card edge connector designed for PCI Express Gen 4 applications. It features a dual-side configuration with 64 contacts and a 1.00 mm (0.039 inch) centerline pitch. The connector utilizes through-hole mounting and includes gold-plated contacts to ensure reliable high-speed data transmission. The housing is black, and the unit is specified for vertical board-to-board or cable connections within computing infrastructure.

Edgeboard Connectors Feature Summary

• Supports PCI Express Gen 4 high-speed data transmission standards
• Dual-sided contact configuration for enhanced signal integrity
• Gold-plated contacts ensure reliable electrical performance in demanding environments

Edgeboard Connectors Applications

• High-performance computing systems
• Server backplane interconnects
• Data center infrastructure equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and package style. Ensure compatibility with existing PCB footprint dimensions and mating card edge specifications. Confirm availability of mating connectors within the same AMPMODU MTE series family for proper system integration.

Edgeboard Connectors Selection Notes

Select this component when PCI Express Gen 4 compliance is required for dual-sided card edge interfaces. Evaluate the 1.00 mm pitch against available routing space on the target printed circuit board. Consider the through-hole termination method for mechanical stability during thermal cycling operations.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMPMODU MTE series, which provides robust interconnection solutions for high-density electronic assemblies. The series is engineered to meet rigorous industry standards for signal integrity and mechanical durability in critical infrastructure applications.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other 64-position dual-sided PCI Express Gen 4 card edge connectors from the same manufacturer series. Verify that alternative part numbers maintain identical 1.00 mm pitch and through-hole mounting characteristics.
