Edgeboard Connectors Overview

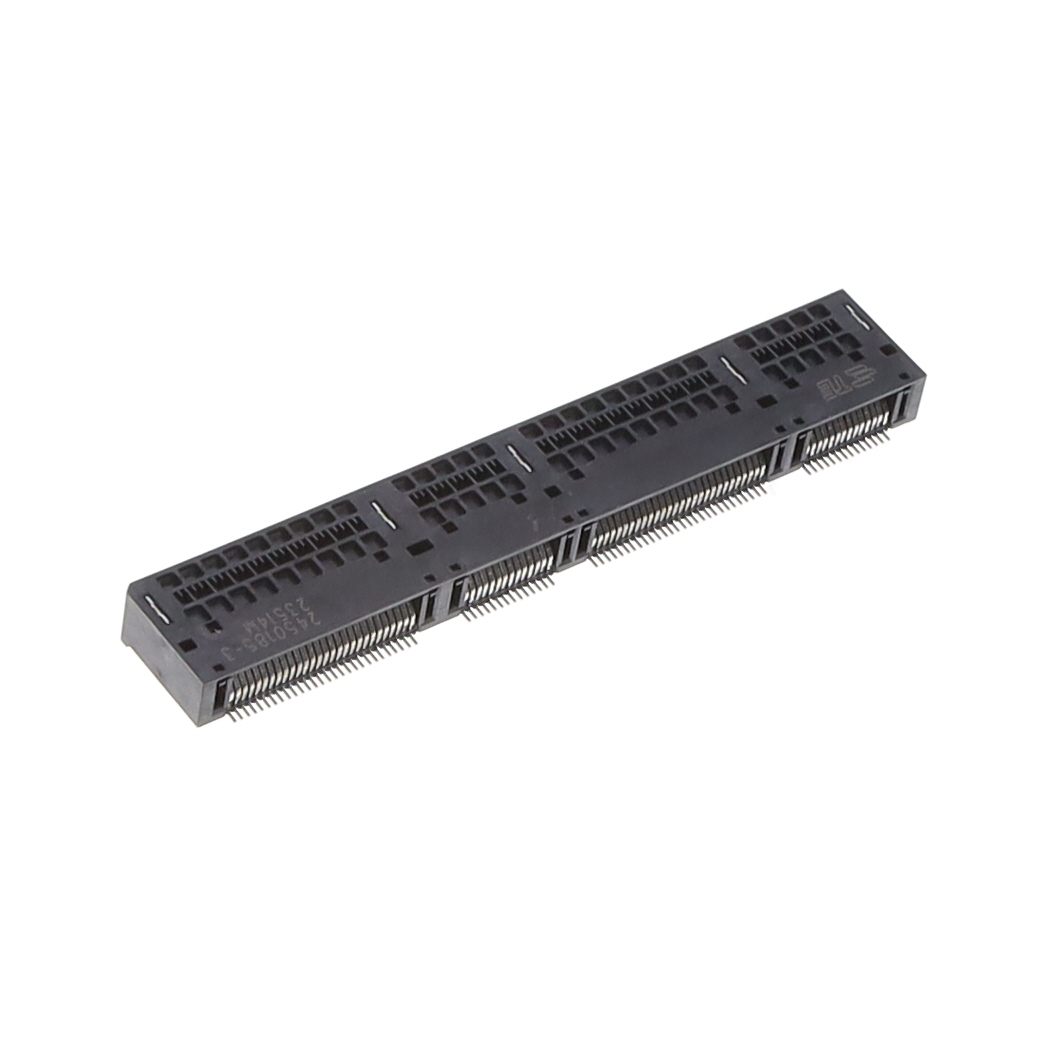

The 2450185-3 is a 168-position female connector assembly manufactured by TE Connectivity AMP Connectors. Designed for high-density interconnect applications, this component features a dual-edge contact configuration with a precise 0.024-inch (0.60mm) pitch. The housing is constructed from black polymer material, providing structural integrity and visual identification. Electrical contacts are gold-plated to ensure reliable signal transmission and corrosion resistance in demanding environments. This receptacle assembly is engineered for surface-mount or specific board integration scenarios requiring compact form factors.

Edgeboard Connectors Feature Summary

• Dual-edge contact architecture enables high pin density within a minimal footprint
• Gold-plated terminals provide durable electrical conductivity and oxidation resistance
• Black polymer housing offers mechanical stability and standard industry color coding

Edgeboard Connectors Applications

• High-density data processing modules
• Compact electronic instrumentation interfaces
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the exact mating counterpart specifications before procurement, as dual-edge connectors require precise alignment with corresponding header assemblies. Confirm that the receiving PCB layout accommodates the 0.60mm pitch and dual-edge geometry. Ensure storage conditions maintain contact plating integrity prior to assembly. Cross-reference the official datasheet for reflow soldering profiles if applicable to the specific mounting method.

Edgeboard Connectors Selection Notes

Select this component when space constraints necessitate a high I/O count within a narrow profile. The 0.60mm pitch allows for significant channel density compared to standard 2.54mm or 1.27mm connectors. Evaluate thermal management requirements, as dense arrays may influence local board temperatures. Consider the mechanical retention needs of the dual-edge interface during vibration testing phases.

Edgeboard Connectors Part Context

This part belongs to the broader portfolio of high-reliability interconnect solutions provided by TE Connectivity AMP Connectors. It addresses the market demand for miniaturized yet robust connections in sectors where signal integrity and physical durability are critical. The design reflects industry trends toward increased bandwidth and reduced form factors in modern electronic systems.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical pitch, position count, and contact orientation compatibility.
