2474795-2

Edgeboard Connectors Overview

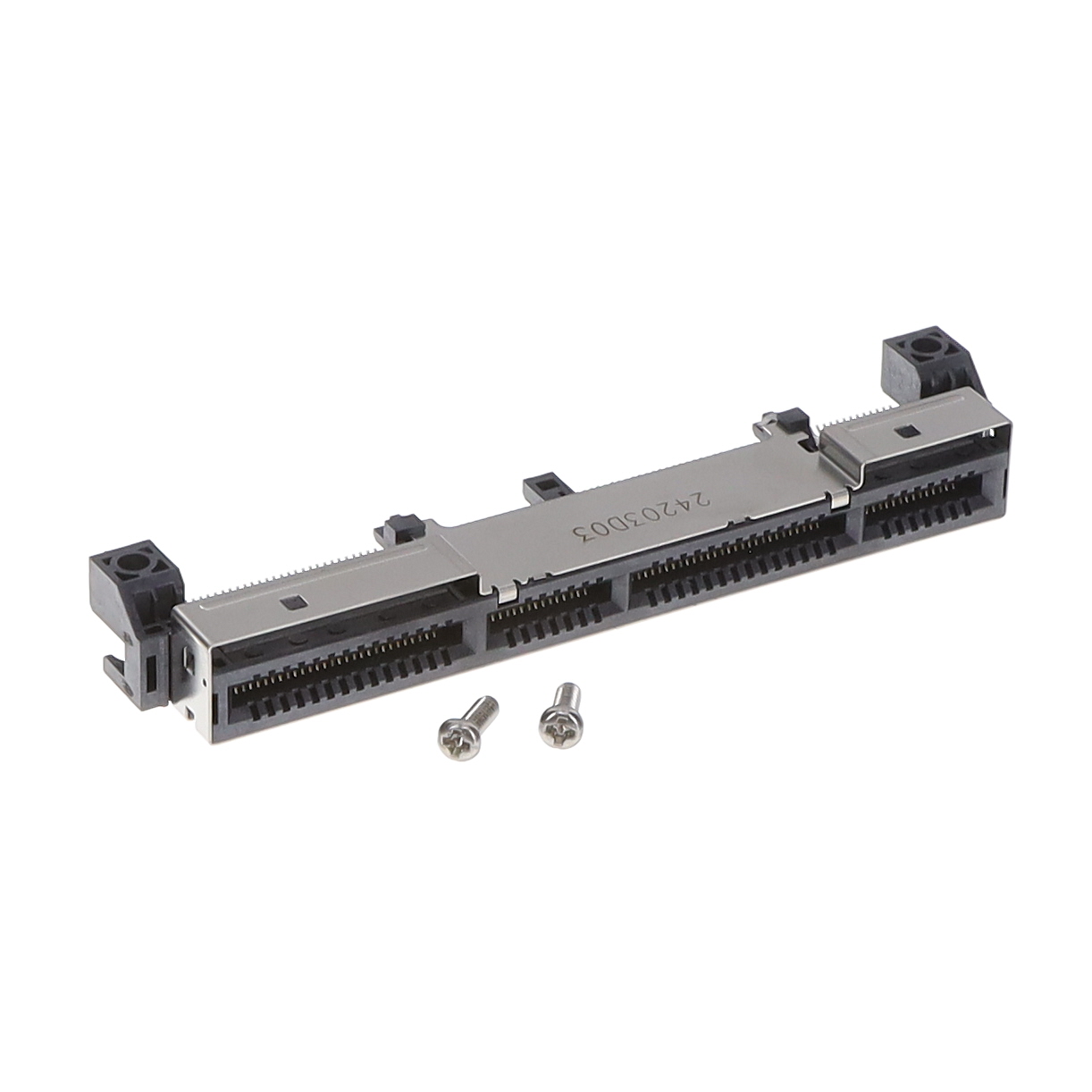

The TE Connectivity AMP Connectors part number 2474795-2 is a high-speed edgeboard connector designed for signal integrity applications. It features a 168-position configuration with a characteristic impedance of 85 ohms. The component includes an integrated shield housing constructed from silver-plated material to provide electromagnetic interference protection. This connector is engineered for board-to-board or backplane interconnections requiring robust shielding and precise impedance control.

Edgeboard Connectors Feature Summary

• Integrated shield housing for enhanced electromagnetic interference protection
• Designed for 85-ohm impedance applications to maintain signal integrity
• High-density 168-position configuration for complex interconnect needs

Edgeboard Connectors Applications

• High-speed data transmission systems
• Backplane interconnections in telecommunications equipment
• Server and storage area network architectures

Edgeboard Connectors Procurement Notes

Verify the exact physical dimensions and mating interface specifications against the official datasheet before integration. Confirm that the 85-ohm impedance requirement aligns with the system design. Ensure compatibility with the intended PCB layout and shielding requirements. Check for any specific handling instructions related to the shielded housing structure.

Edgeboard Connectors Selection Notes

Select this component when 85-ohm impedance matching is critical for signal quality in high-frequency environments. The integrated shield makes it suitable for noisy industrial or telecommunications settings. Consider the 168-pin count for dense I/O requirements. Evaluate the mechanical fit within the enclosure constraints due to the shielded housing profile.

Edgeboard Connectors Part Context

This connector belongs to the high-speed interconnect family from TE Connectivity, focusing on maintaining signal integrity through controlled impedance. It complements other shielded solutions in the portfolio by offering a robust mechanical structure alongside electrical performance specifications for demanding digital applications.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference options directly with the manufacturer using current availability status.
