2673021801

$0.27

Description：FERRITE CORE SOLID 1.58MM
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk

SKU:1f70123201e3 Category: Cable Ferrites Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2673021801 is listed in the Ferrite Cable range at ChipApex. The manufacturer field lists Fair-Rite Products Corp.. Its product description is FERRITE CORE SOLID 1.58MM. Review the specifications below when checking this part for your BOM.

Ferrite Cable specifications for 2673021801

Description：FERRITE CORE SOLID 1.58MM
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk
Type：Round
Design：Solid
Impedance @ Frequency：-
Material：73
Inner Dimension：0.062" Dia (1.58mm)
Outer Dimension：0.200" Dia (5.08mm)
Ratings：-
Mounting Type：Free Hanging
Length：0.437" (11.10mm)

Ferrite Cable datasheet and documents for 2673021801

2673021801

Ferrite Cable Overview

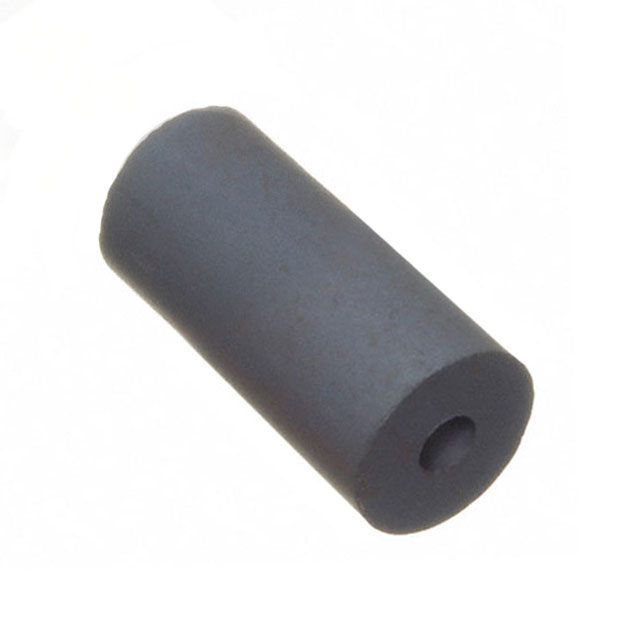

Fair-Rite 2673021801 is a solid round ferrite cable core designed for EMI suppression. It utilizes Material 73, optimized for frequencies below 50 MHz. The component features an impedance of 95 ohms at 10 MHz and 35 ohms at 25 MHz. Physical dimensions include an inner diameter of 1.45 mm, an outer diameter of 5.1 mm, and an external length of 11.1 mm. It is supplied in bulk packaging.

Ferrite Cable Feature Summary

Solid construction provides mechanical stability for cable clamping
Material 73 composition targets low-frequency noise attenuation
Shield bead design facilitates direct installation on cables

Ferrite Cable Applications

Electromagnetic interference suppression on signal cables
Common mode noise reduction in electronic assemblies
Cable shielding enhancement for data lines

Ferrite Cable Procurement Notes

Verify the specific impedance requirements against the application frequency range, as Material 73 performance varies significantly across the spectrum. Confirm that the physical dimensions accommodate the target cable diameter without excessive force or looseness. Ensure compliance with RoHS directives if required by the end product specifications.

Ferrite Cable Selection Notes

Select this component when primary noise sources exist below 50 MHz. Material 73 offers high permeability in this range compared to other Fair-Rite materials. Consider the solid core design for permanent installations where disassembly is not anticipated. Evaluate the 1.45 mm inner diameter to ensure compatibility with the specific cable gauge being treated.

Ferrite Cable Part Context

This part belongs to the Fair-Rite 26 series of ferrite beads. These components are distinct from split cores or snap-on types due to their solid manufacturing process. The 2673021801 designation specifically identifies the combination of the 26 series form factor and Material 73 composition.
