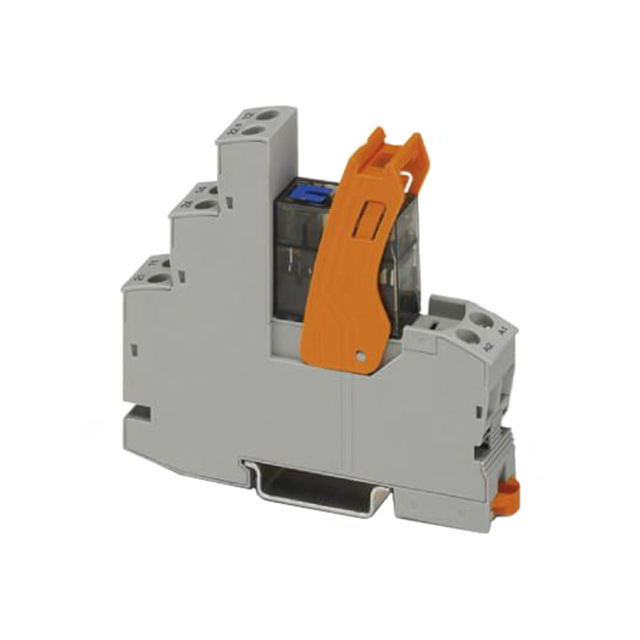

2905659

2905659 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Phoenix Contact. Its product description is RELAY GEN PURPOSE SPDT 11A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 2905659

• Description：RELAY GEN PURPOSE SPDT 11A 24V
• Series：RIF
• Mfr：Phoenix Contact
• Package：Bulk
• Mounting Type：DIN Rail
• Coil Voltage：24VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：11:00 AM
• Switching Voltage：250VAC, 250VDC - Max
• Load - Max Switching：-
• Coil Current：18 mA
• Coil Type：Non Latching
• Features：Diode, Lighted Indicator, Socket Included
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：-
• Must Release Voltage：-
• Operating Temperature：-40°C ~ 60°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：CSA
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：9 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for 2905659
