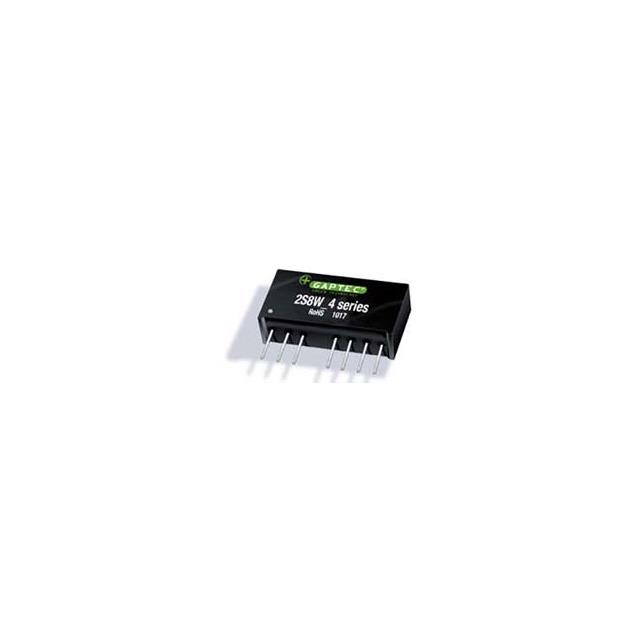

2S8W_2409D2RP

2S8W_2409D2RP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC INDUSTRIAL. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 2S8W_2409D2RP

• Description：DC-DC INDUSTRIAL
• Series：2S8W_2RP (2W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：9V
• Voltage - Output 2：-9V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：111mA, 111mA
• Power (Watts)：1.998 W
• Voltage - Isolation：2 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 7 Leads
• Size / Dimension：0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
