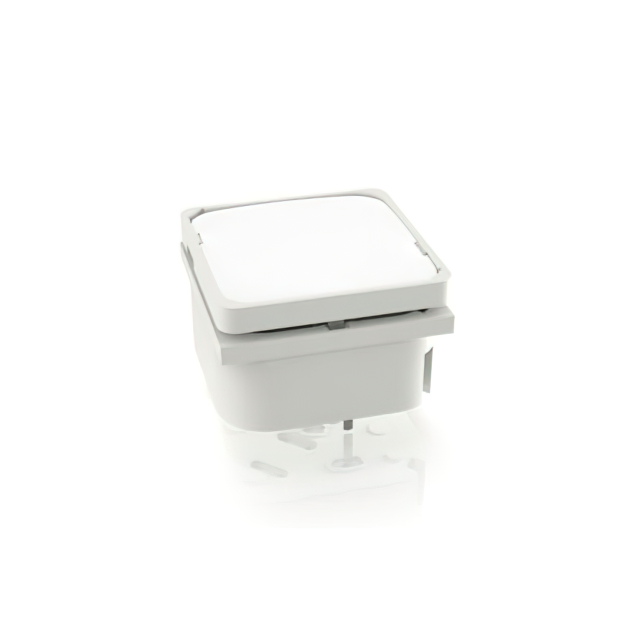

3.14.001.501/0000

3.14.001.501/0000 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists RAFI USA. Its product description is SWITCH TACTILE SPST-NO 0.1A 35V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for 3.14.001.501/0000

• Description：SWITCH TACTILE SPST-NO 0.1A 35V
• Series：RF19H
• Mfr：RAFI USA
• Package：Bulk,Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.1A @ 35VAC/DC
• Actuator Type：Square Button
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：12.50mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：19.05mm x 19.05mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：296gf
• Ingress Protection：-
• Features：-
• Operating Temperature：-25°C ~ 70°C

Tactile Switches datasheet and documents for 3.14.001.501/0000
