3-1761465-1

Edgeboard Connectors Overview

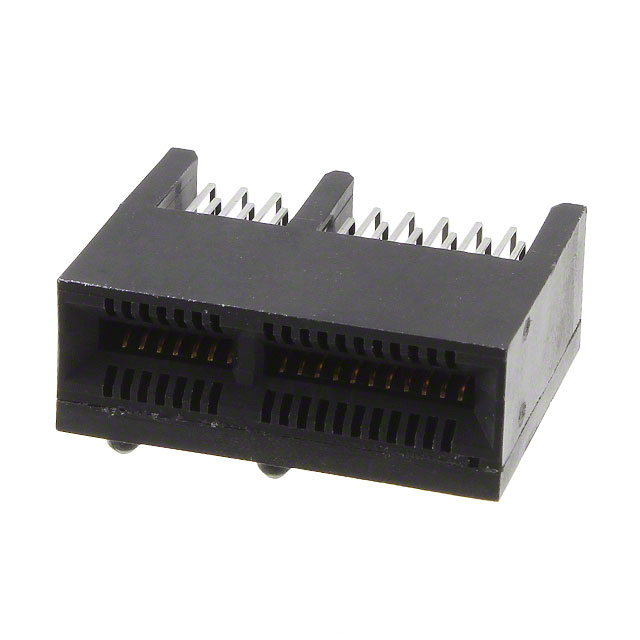

The TE Connectivity AMP Connectors part number 3-1761465-1 is a 36-position female connector designed for PCI Express applications. It features a 0.039-inch (1.00mm) pitch and utilizes gold-plated contacts. The housing is black, and the unit operates within a temperature range of -40°C to 85°C. This component is configured as a right-angle assembly with a 5.8mm slot height and a 2.3mm PCB thickness specification.

Edgeboard Connectors Feature Summary

• Right-angle board-to-board connection architecture
• Gold-plated copper alloy contact system
• PCI Express compatible design

Edgeboard Connectors Applications

• PCI Express card edge interfaces
• High-density electronic assemblies
• Board-to-board interconnect systems

Edgeboard Connectors Procurement Notes

Verify that the specific ordering suffix matches the required mechanical dimensions, particularly the slot height and PCB thickness specifications. Confirm that the gold plating on the contacts meets the necessary conductivity requirements for the intended signal integrity. Ensure the right-angle orientation aligns with the physical layout constraints of the target printed circuit board assembly.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, high-density interface is required for PCI Express implementations. The 1.00mm pitch allows for compact routing in space-constrained designs. The right-angle configuration facilitates vertical stacking or specific mounting orientations. Verify compatibility with mating card edge connectors regarding contact geometry and retention force.

Edgeboard Connectors Part Context

This connector belongs to the PCI Express / PCI Connectors product category manufactured by TE Connectivity AMP Connectors. It serves as a specialized interface solution for modern computing and communication hardware requiring reliable high-speed data transmission between boards.

Edgeboard Connectors Replacement Considerations

Cross-reference with part number 2-1761465-1 for similar 36-position configurations. Verify mechanical fit and electrical continuity before substituting any alternative components from other manufacturers.
