3-1761465-3

Edgeboard Connectors Overview

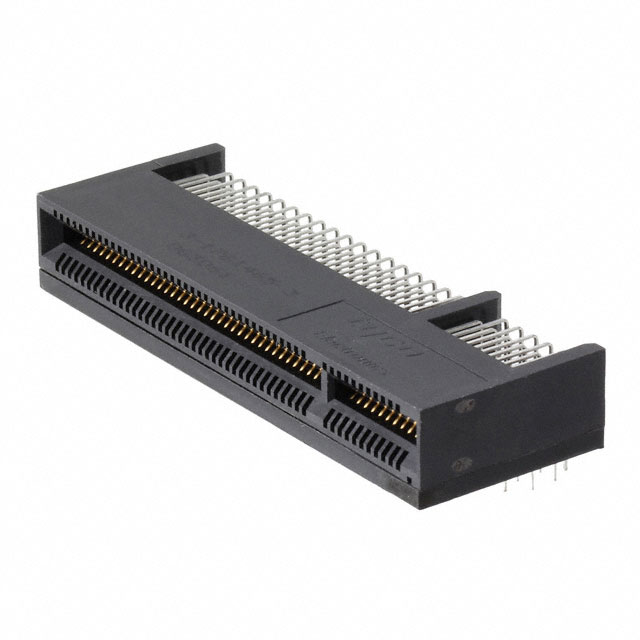

The 3-1761465-3 is a PCI Express connector manufactured by TE Connectivity AMP Connectors. It features 98 positions with a 1.00mm (0.039 inch) centerline pitch. The component utilizes a right-angle, surface-mount termination style and is designed for board-to-board applications. The housing is black, and the contact finish is gold. This connector supports high-speed data transmission standards required for modern computing architectures.

Edgeboard Connectors Feature Summary

• Supports PCIe Gen 5 speeds up to 32GT/s
• Maintains 85Ω impedance rating for signal integrity
• Features a 1.0mm pitch for compact design

Edgeboard Connectors Applications

• PCIe Gen 5 CEM connectors
• High-speed data transmission systems
• Modern computing architectures

Edgeboard Connectors Procurement Notes

Verify the specific pin configuration and mechanical dimensions against the target PCB layout before integration. Confirm that the gold contact finish and 85-ohm impedance requirements align with the system's signal integrity specifications. Ensure the right-angle surface-mount form factor fits within the designated assembly clearance constraints.

Edgeboard Connectors Selection Notes

Select this component when designing for PCIe Gen 5 performance levels requiring 32GT/s data rates. The 1.0mm pitch allows for denser board layouts compared to older standards. Consider the right-angle orientation for vertical stacking or space-constrained chassis designs where horizontal profile is limited.

Edgeboard Connectors Part Context

This part belongs to the PCI & PCI Express Connectors category from TE Connectivity. It is specifically engineered for high-reliability applications in server and storage environments. The product line emphasizes robust signal integrity and mechanical stability for next-generation interface standards.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
