3-531341-0

Edgeboard Connectors Overview

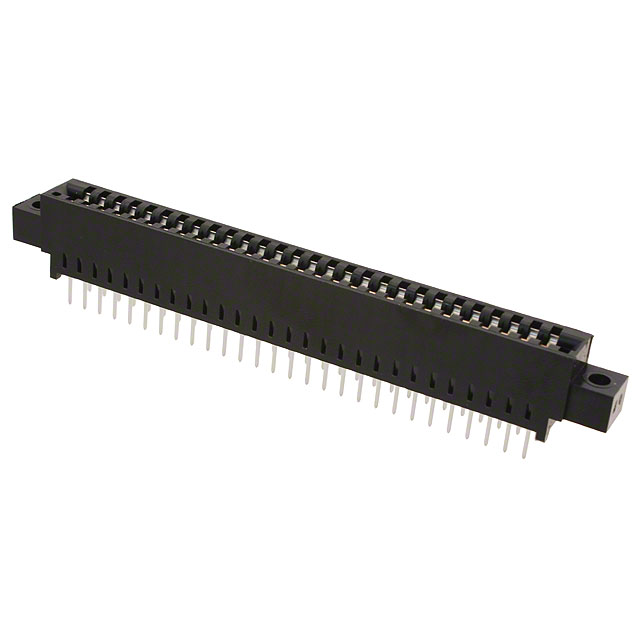

3-531341-0 is a dual-edge female edgeboard connector from the Rotary Cam series by TE Connectivity AMP Connectors. It features 56 positions with a 0.125-inch (3.18mm) pitch. The contacts are gold-plated copper alloy with a suspension type design. The housing is black, made of polyester reinforced with glass fiber. It supports card thicknesses between 0.054 and 0.070 inches. The operating temperature range is -55°C to 85°C. The flange features a top mount opening with an unthreaded 0.128-inch diameter.

Edgeboard Connectors Feature Summary

• Zero insertion force mechanism utilizing rotary cam technology for secure board engagement.
• Dual-edge configuration designed for non-specified double-sided circuit boards.
• Gold-plated contact finish ensures reliable electrical conductivity and corrosion resistance.

Edgeboard Connectors Applications

• High-density electronic system interconnects
• Industrial control panel assemblies
• Telecommunications equipment backplanes

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the received part matches the specific 3-531341-0 designation, as this item is marked obsolete. Check for potential supply chain restrictions or alternative sourcing requirements due to end-of-life status. Ensure storage conditions comply with moisture sensitivity level specifications prior to assembly.

Edgeboard Connectors Selection Notes

Select this component when a zero-insertion-force solution is required for dual-edge board applications. The 0.125-inch pitch accommodates specific board layouts requiring wider spacing. Verify compatibility with the target PCB thickness range of 0.054 to 0.070 inches. Consider the thermal rating of -55°C to 85°C against environmental operating conditions. Evaluate the rotary cam actuation style against available mounting space constraints.

Edgeboard Connectors Part Context

This connector belongs to the Rotary Cam series, which specializes in high-reliability edgeboard connections. It serves as a legacy component within TE Connectivity's portfolio, often found in established industrial designs. The dual-edge female gender allows for robust mating with corresponding male edge connectors on daughter cards.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available for this obsolete component. Engineering teams should evaluate current TE Connectivity edgeboard connectors with compatible pitch and form factor. Cross-reference mechanical dimensions and electrical ratings before implementing any alternative source.

Edgeboard Connectors FAQ

What is the contact material composition?

The contacts are constructed from copper alloy with a gold plating finish.

Does this connector support single-sided boards?

No, it is specifically designed as a dual-edge connector for double-sided circuit boards.
