3-794618-8

Headers, Male Pins Overview

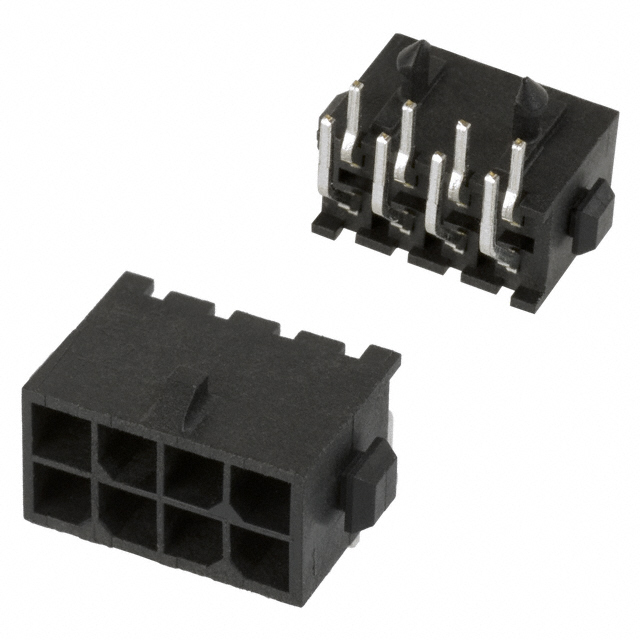

The TE Connectivity AMP Connectors part number 3-794618-8 is a Micro MATE-N-LOK series header assembly. It features an 8-position, dual-row configuration with male pin contacts and a 0.118-inch (3.00mm) pitch. Designed for through-hole right-angle mounting, the connector utilizes brass contacts with tin plating on the posts and gold or gold-palladium plating on the mating surfaces. The housing is constructed from black polyamide (PA/nylon) with a UL94 V-0 flammability rating. It supports a rated voltage of 250V and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for compact PCB integration
• Dual-row header configuration with 8 positions
• Gold or gold-palladium contact finish for reliable signal transmission
• Polyamide insulation material with UL94 V-0 fire rating

Headers, Male Pins Applications

• General purpose wire-to-board interconnections
• Industrial control systems requiring robust rectangular connectors
• Consumer electronics assemblies utilizing standard pitch headers

Headers, Male Pins Procurement Notes

Verify the specific suffix requirements against the official datasheet before ordering, as variations may exist in packaging or plating options. Confirm that the right-angle orientation matches the board layout constraints. Ensure compatibility with the corresponding Micro MATE-N-LOK housing and terminal crimping tools. Cross-reference the manufacturer's latest documentation to confirm current production status and availability.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for space-constrained designs. The 3.00mm pitch allows for moderate density routing compared to finer pitches. Verify that the through-hole termination method aligns with the manufacturing process capabilities. Consider the current rating limitations associated with the specific wire gauge used in the application.

Headers, Male Pins Part Context

This connector belongs to the Micro MATE-N-LOK family, known for its reliability in general-purpose applications. The series offers various configurations including straight and right-angle headers, as well as different row counts. It is widely utilized in industries requiring durable electrical connections with standardized dimensions and proven performance history.

Headers, Male Pins Replacement Considerations

Direct substitute part numbers are not explicitly confirmed in the provided public documentation. Consult the manufacturer's cross-reference guide for potential alternatives if this specific model becomes unavailable.
