302-008-356-201

Edgeboard Connectors Overview

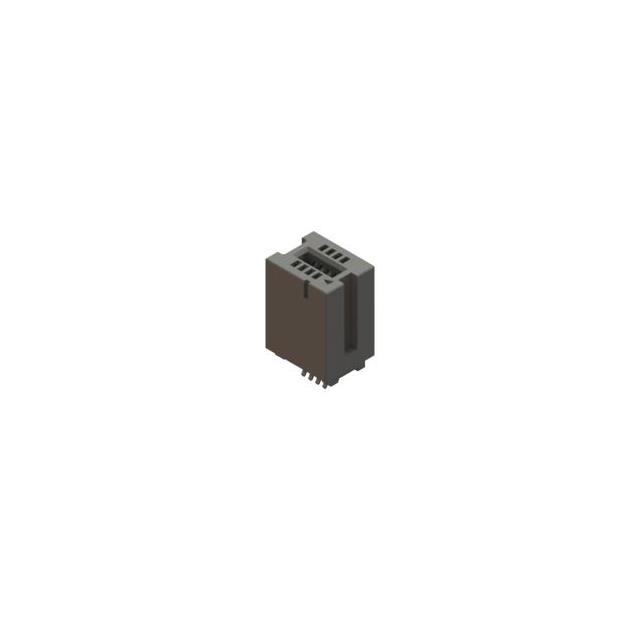

The EDAC Inc. 302-008-356-201 is a standard card edge connector from the 302 Series, designed for dual-edge board applications. It features 8 positions with female contacts and a 0.050" (1.27mm) pitch. The connector utilizes gold flash-plated cantilever contacts housed in black polyamide (PA66). It supports PCB thicknesses of 0.051" to 0.071" (1.30mm to 1.80mm) and operates within a temperature range of -55°C to 85°C.

Edgeboard Connectors Feature Summary

• Dual-edge configuration with cantilever contact type for reliable signal transmission
• Gold flash plating on copper alloy contacts ensures corrosion resistance
• Black polyamide (PA66) insulator housing provides structural stability

Edgeboard Connectors Applications

• Standard card edge interconnections
• Industrial control systems
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact finish and housing material specifications. Ensure compatibility with the target PCB thickness range of 0.051" to 0.071". Confirm RoHS compliance status and moisture sensitivity level requirements prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with 0.050" pitch is required. It is suitable for applications needing female contacts with gold flash plating. Consider the operating temperature range and insulator material properties for environmental suitability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 302 Series, which offers various configurations for standard card edge connectors. The series is characterized by its 0.050" contact spacing and diverse pin count options, catering to general-purpose electronic interconnection needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitute part numbers. Ensure any replacement matches the 0.050" pitch, 8-position count, and dual-edge mounting style.
