302-080-358-201

Edgeboard Connectors Overview

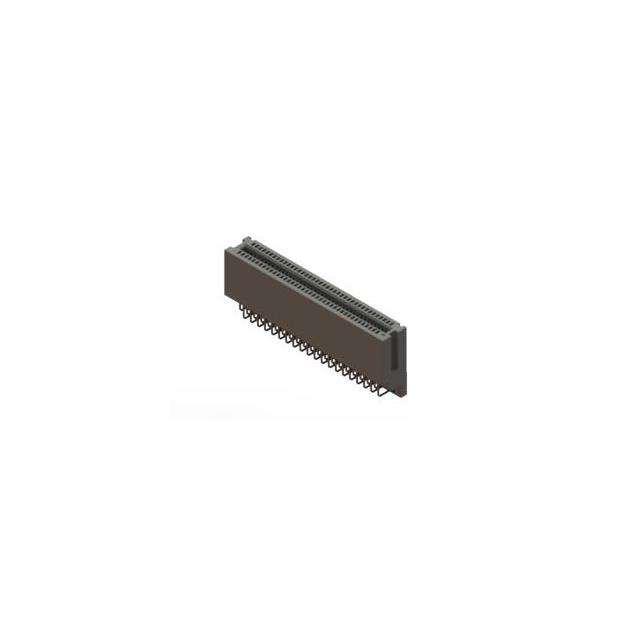

The EDAC Inc. 302-080-358-201 is a standard card edge connector from the 302 Series, designed for dual-edge non-specified cards. It features 80 positions with a 0.050" (1.27mm) contact spacing and a 0.200" (5.08mm) row spacing. The connector utilizes female contacts with gold plating and is constructed with a black polyamide (PA66) housing. It supports board thicknesses of 1.57mm and employs a through-hole termination method for secure mounting.

Edgeboard Connectors Feature Summary

• Dual-edge configuration compatible with non-specified card edge boards
• Gold-plated female contacts ensure reliable signal transmission
• Polyamide (PA66) housing provides structural integrity and insulation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Medical device internal circuit connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with the target PCB layout and card edge specifications before procurement. Cross-reference the DigiKey part number 151-302-080-358-201 for accurate distributor identification.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection with 0.050" pitch is required for dual-sided card edges. The 80-position count suits applications needing substantial I/O within a compact footprint. Consider the PA66 material and gold finish for environments demanding durability and corrosion resistance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 302 Series, which specializes in standard card edge connectors. The series offers various position counts and spacing options, catering to diverse electronic assembly needs. The 302-080-358-201 specifically addresses requirements for 80-pin dual-edge interfaces with precise dimensional tolerances.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 302 Series variants with matching 80-position dual-edge specifications. Verify that alternative parts maintain the same 0.050" pitch and PA66 housing material to ensure mechanical and electrical compatibility.
