305-012-500-201

Edgeboard Connectors Overview

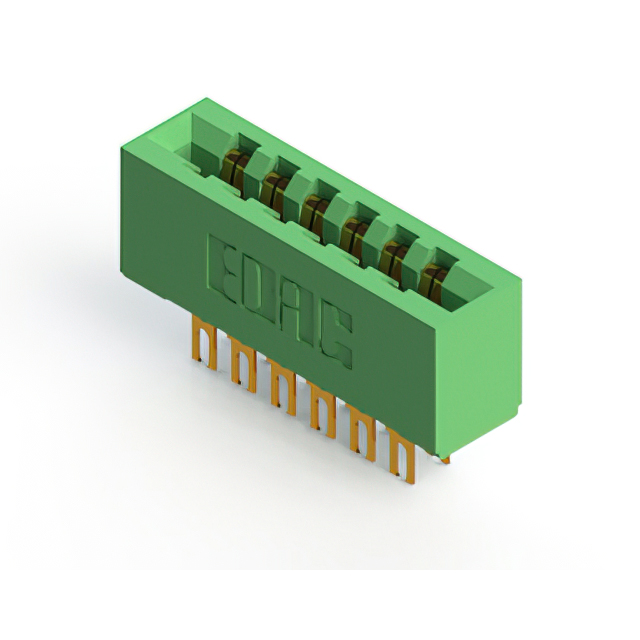

The EDAC Inc. 305-012-500-201 is a standard card edge connector receptacle from the 305 series, designed for panel mount applications. It features 12 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts with a solder lug termination style. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from thermoplastic material, ensuring reliable performance in industrial environments.

Edgeboard Connectors Feature Summary

• Dual-row configuration for high-density signal routing
• Gold-plated contacts ensure low contact resistance and corrosion resistance
• Solder lug termination provides secure mechanical attachment
• Thermoplastic housing offers durability and environmental protection

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Test and measurement instrumentation
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating thickness and material variations. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Cross-reference the RoHS compliance status with the latest manufacturer datasheet to meet regulatory requirements for your region.

Edgeboard Connectors Selection Notes

Select this component when a 12-position dual-row connector is required for panel-mounted installations. The 3.96 mm pitch accommodates standard card edge designs. Consider the 5 A current rating and wide operating temperature range for demanding environments. Verify that the solder lug termination method aligns with the assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in industrial and commercial applications. The series offers various position counts and mounting styles to support diverse design needs. The 305-012-500-201 specifically addresses the need for a compact, reliable connection point for double-sided cards.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official cross-reference guide for verified substitutes. No direct public substitute part numbers are confirmed in available documentation.
