305-012-500-208

Edgeboard Connectors Overview

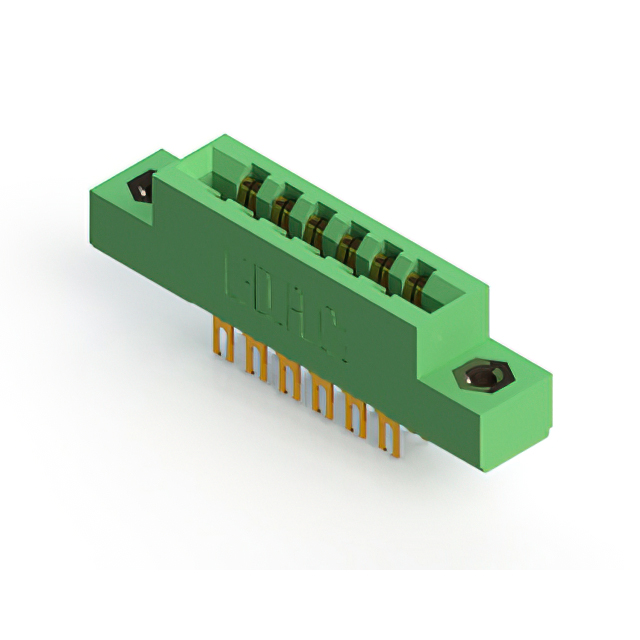

The EDAC 305-012-500-208 is a standard card edge connector from the 305 series, designed for vertical panel mounting. It features a dual female configuration with 12 positions and a pitch of 3.96 mm (0.156 inches). The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts for reliable signal transmission. Rated for 5 A current, it employs a solder lug termination type. The housing is constructed from thermoplastic material, ensuring durability in industrial environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure card insertion
• Vertical panel mount style with solder lug termination
• Gold-plated copper alloy contacts for enhanced conductivity

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and insulation resistance ratings. Ensure compatibility with the target PCB edge guide dimensions before procurement. Cross-reference the manufacturer part number directly with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status through the latest datasheet revision.

Edgeboard Connectors Selection Notes

Select this component when a 12-position dual-edge interface is required for panel-mounted applications. The 3.96 mm pitch accommodates standard thick PCBs up to 1.57 mm. Consider the solder lug termination for robust mechanical fixation during vibration. Verify that the operating temperature range meets the environmental requirements of the specific deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options while maintaining consistent dimensional standards. The 305 series is widely used in modular electronic systems requiring high-density connections. This specific model represents a mid-range position count within the product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series variants with matching pin counts and pitch. Verify mechanical fitment and electrical ratings before swapping. Generic equivalents may lack the specific gold plating or thermoplastic housing properties. Always validate cross-references against official engineering drawings.
