305-012-500-504

Edgeboard Connectors Overview

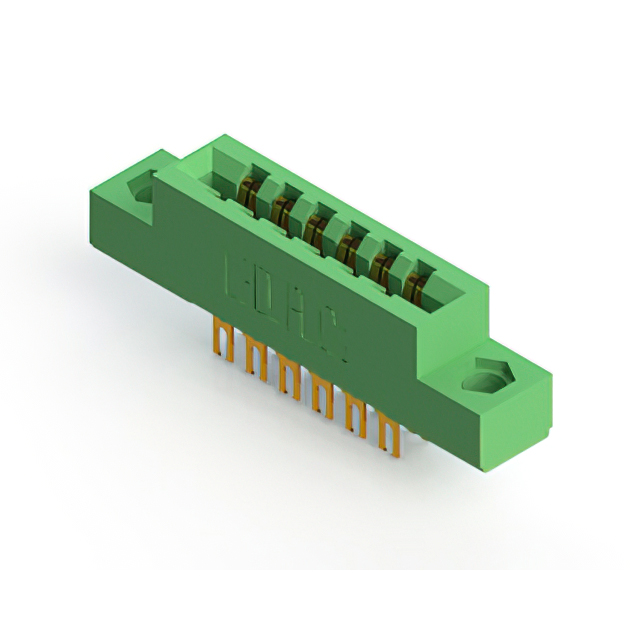

The EDAC Inc. 305-012-500-504 is a standard card edge connector from the 305 series, designed for vertical panel mounting. It features a dual female configuration with 12 positions and a contact spacing of 0.156 inches (3.96 mm). The row spacing measures 0.140 inches (3.56 mm), accommodating printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are constructed from copper alloy with gold plating, ensuring reliable conductivity. Rated for 5 A continuous current and 1800 VACrms insulation, it utilizes solder eyelet termination.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Dual female contact configuration for robust board connection
• Gold-plated copper alloy contacts for enhanced durability

Edgeboard Connectors Applications

• Industrial control systems requiring high-reliability interconnects
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and insulation material specifications. Ensure compatibility with the target PCB thickness of 0.062 inches. Cross-reference the part number with authorized distributors to confirm availability and lead times, as supply chain status may vary by region.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for double-sided card edge applications. The 12-position layout suits moderate-density signal routing. Confirm that the 5 A current rating and 1800 VACrms dielectric strength meet the system's electrical requirements. Verify that the 3.96 mm pitch aligns with the mating card edge design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which specializes in standard card edge connectors. The series offers various position counts and termination options while maintaining consistent mechanical dimensions. The 305-012-500-504 variant specifically addresses needs for compact, vertically mounted connections with standardized spacing.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for cross-reference data if alternative sourcing is required.
