305-012-556-578

Edgeboard Connectors Overview

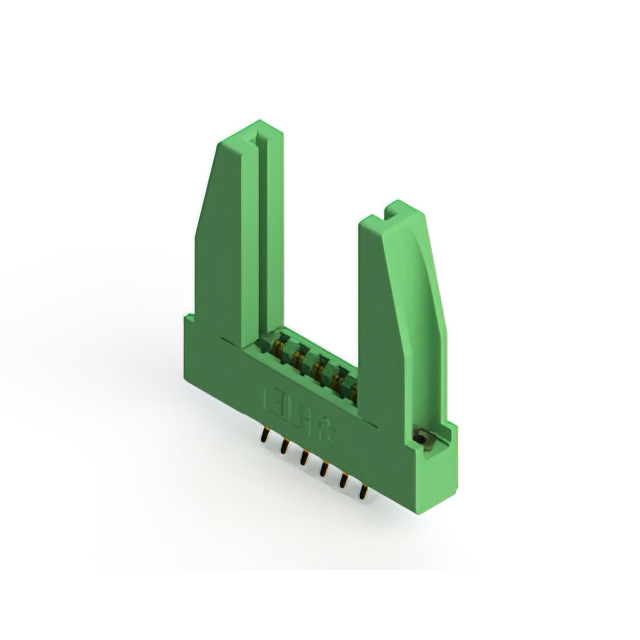

The EDAC Inc. 305-012-556-578 is a standard card edge connector designed for dual-edge board interfaces. It features 12 positions arranged in two rows with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and solder pin termination for secure electrical connections. Designed for panel mounting at a vertical angle, it accommodates PCBs with a thickness of 1.57 mm. The housing is constructed from green thermoplastic material, providing insulation resistance of 5 GOhms. It supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector configuration for robust board interface
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides structural integrity and insulation

Edgeboard Connectors Applications

• Dual-edge card slot interfaces
• Panel-mounted electronic assemblies
• Vertical interconnection systems requiring high reliability

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and housing color specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the 12-position layout aligns with the design footprint requirements. Cross-reference the thermal operating limits with system environmental conditions to guarantee performance stability.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required. The 12-position count suits applications needing moderate I/O density. Verify that the vertical panel mount style fits the enclosure constraints. Ensure the 5 A current rating meets the circuit load demands. Confirm that the solder pin termination method matches the assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts while maintaining consistent 3.96 mm pitch and mechanical dimensions. The 305-012-556-578 specifically denotes the 12-position variant with dual-edge capability. It is engineered for industrial and commercial applications requiring durable vertical connections.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the 305 series or compatible families. Ensure any replacement maintains the 3.96 mm pitch and 1.57 mm board thickness compatibility. Verify identical contact material and plating specifications to preserve electrical performance.
