305-014-500-204

Edgeboard Connectors Overview

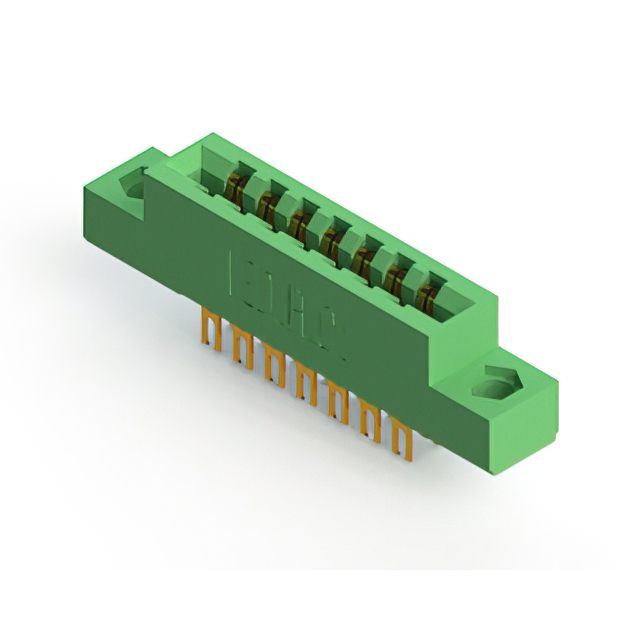

The EDAC Inc. 305-014-500-204 is a standard card edge connector from the 305 series, designed for vertical panel mounting. It features 14 positions with a 3.96 mm (0.156 inch) pitch and supports a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts with solder eyelet termination. It is rated for 5 A continuous current and offers an insulation resistance of 5 GOhms. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Provides high dielectric strength with 1800VACrms rating
• Features gold-plated contacts on copper alloy substrate for reliable conductivity

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard board thicknesses
• Automotive electronics needing high temperature stability

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm contact finish and termination style. Ensure the ordering part number matches the required position count and pitch specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet before procurement.

Edgeboard Connectors Selection Notes

Select this component when a 14-position vertical interface is required for 1.57 mm thick boards. The 3.96 mm pitch accommodates standard card edge designs. Verify that the application environment stays within the specified -40°C to +105°C operating range and requires polarizing key compatibility.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its 3.96 mm pitch and versatile mounting options. The 305-014-500-204 specifically denotes the 14-position variant with gold plating and solder eyelet termination suitable for panel mount applications.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series parts for different position counts. Verify mechanical dimensions and electrical ratings against alternative suppliers' equivalents to ensure functional compatibility in existing designs.
