305-014-500-212

Edgeboard Connectors Overview

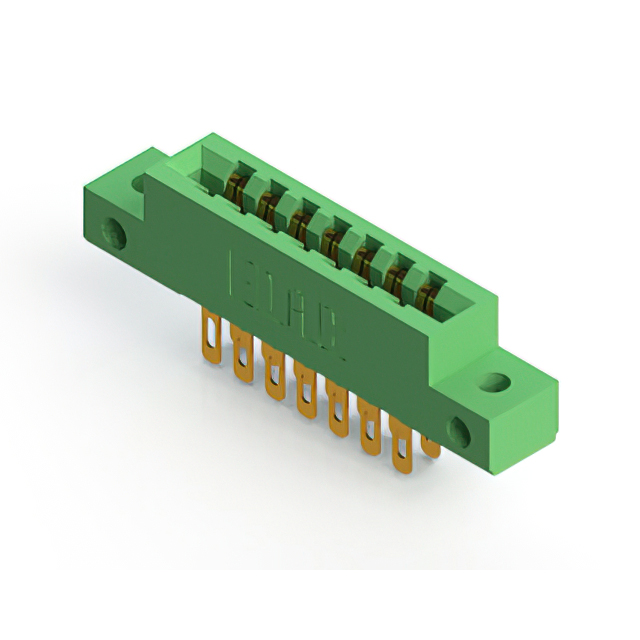

The EDAC Inc. 305-014-500-212 is a standard card edge connector header featuring 14 positions arranged in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing with a 3.56 mm row pitch. Designed for panel mounting at a vertical angle, this component accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The contacts are constructed from copper alloy and feature gold plating to ensure reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual-row header design accommodating two rows of connections
• Vertical panel mount installation style for secure positioning
• Gold-plated copper alloy contacts for enhanced conductivity
• Compatible with 0.062 inch nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• General-purpose electronic module docking

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, termination type, and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Cross-reference the part number with official EDAC documentation to validate availability status and lead times, as distribution channels may vary.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with a 3.96 mm pitch is required for vertical panel mounting. It is suitable for applications demanding robust mechanical stability and reliable electrical performance using gold-plated contacts. Consider the 14-position capacity and 0.062 inch board thickness constraint during the mechanical design phase to ensure proper fit and function within the assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its versatile panel mount headers designed for high-reliability applications. The 305 series typically offers various position counts and termination options, providing engineers with standardized solutions for connecting double-sided or single-sided edge-board modules in complex electronic systems.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 14-position count, dual-row layout, 3.96 mm pitch, and vertical panel mount style. Verify that alternative components support the same 1.57 mm PCB thickness and utilize compatible termination methods. Consult the manufacturer's cross-reference guide for officially confirmed equivalent part numbers.
