305-014-500-502

Edgeboard Connectors Overview

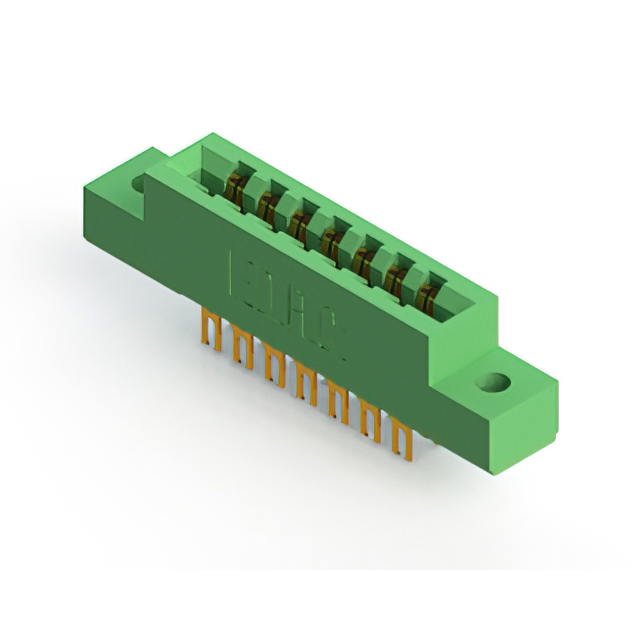

The EDAC Inc. 305-014-500-502 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features a dual female configuration with 14 positions and a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts with a half-bellows termination type and solder lug end connections. It supports PCB thicknesses ranging from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for non-specified double-sided card edges
• Gold-plated copper alloy contacts with half-bellows termination design
• Panel mount installation style with vertical orientation
• Thermoplastic polyester insulation housing

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board connections
• Automotive electronics module interfaces
• Test and measurement instrument backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct flange and termination specifications. Confirm RoHS compliance status and moisture sensitivity levels prior to integration. Cross-reference the part number with authorized distributors to validate current availability and manufacturing lead times. Ensure compatibility with target PCB thickness ranges during mechanical design validation.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, panel-mount card edge solution is required for high-reliability environments. The 3.96 mm pitch accommodates standard board layouts while the gold plating ensures stable signal transmission. Consider the vertical mounting angle and thermoplastic housing material for thermal stability. Validate that the 14-position count matches the circuit interface requirements before finalizing the bill of materials.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in industrial and commercial electronic assemblies. The series offers various position counts and mounting styles to support diverse board-to-board or board-to-backplane connections. The 305-014-500-502 specifically addresses needs for compact, reliable interconnects with durable contact surfaces.

Edgeboard Connectors Replacement Considerations

Consult EDAC official cross-reference guides for direct substitutes within the 305, 315, or 355 series. Verify mechanical dimensions and electrical ratings before adopting alternative part numbers.
