305-014-520-201

Edgeboard Connectors Overview

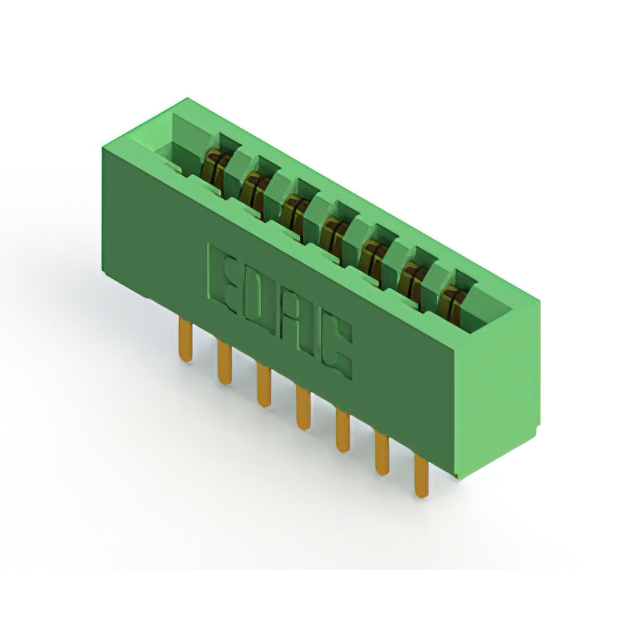

The EDAC Inc. 305-014-520-201 is a dual-edge female card edge connector designed for panel and through-hole mounting. It features 14 positions with a 0.156-inch (3.96mm) pitch across two rows of seven contacts each. The connector utilizes gold-plated copper alloy semi-beryllium contacts to ensure reliable signal transmission. It supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration provides secure connection for non-specified double-sided cards.
• Gold-plated semi-beryllium contacts offer durable electrical performance and corrosion resistance.
• Thermoplastic polyester insulation ensures stability across the specified operating temperature range.

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standard board thicknesses
• Automotive electronics demanding high-temperature reliability

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required contact count and pitch before ordering. Confirm compatibility with the target PCB board thickness, which must fall between 0.054 and 0.070 inches. Ensure the application environment remains within the -40°C to 105°C operational limits defined by the manufacturer specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required for panel or through-hole installation. It is suitable for applications involving non-specified double-sided cards where gold-plated contacts are necessary for long-term reliability. Verify that the housing material and flange dimensions align with the mechanical design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic interconnection needs. The 305-014 variant specifically addresses requirements for lower pin count applications while maintaining the structural integrity and electrical standards of the broader family.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the 305 series. Ensure any replacement maintains identical pitch, contact type, and mounting style specifications.
