305-014-521-207

Edgeboard Connectors Overview

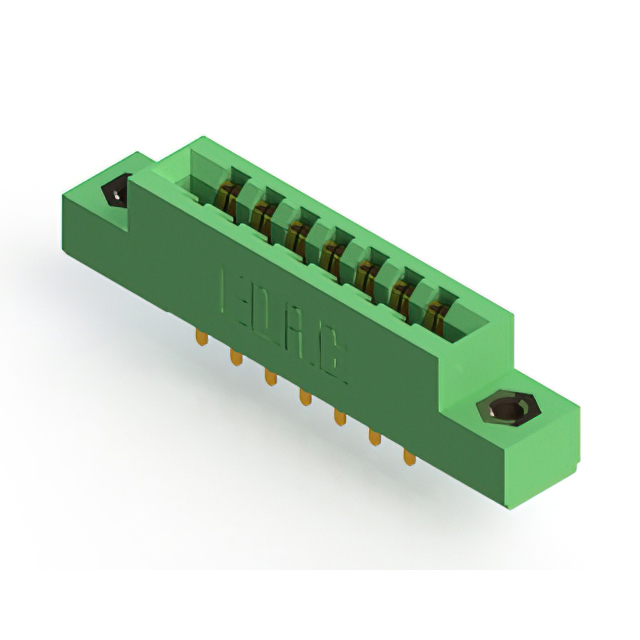

The EDAC Inc. 305-014-521-207 is a standard card edge connector from the 305 series, designed for vertical panel mounting. It features 14 positions arranged in a dual configuration with two rows of seven contacts each. The connector utilizes a 3.96 mm (0.156 inch) pitch and accepts card thicknesses between 1.37 mm and 1.78 mm. Contacts are made of copper alloy with gold plating and terminate via solder pins. The housing is constructed from green thermoplastic polyester, supporting an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for board-to-board interconnection
• Vertical panel mount design with flanged installation capabilities
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester insulation providing thermal stability

Edgeboard Connectors Applications

• Industrial control system interface connections
• Medical equipment internal circuit board linking
• Agricultural technology hardware integration
• General-purpose electronic module insertion

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact mechanical dimensions and termination style. Ensure compatibility with target PCB card thickness specifications before procurement. Confirm RoHS compliance status through current manufacturer datasheets as regulatory requirements may evolve. Cross-reference the Mouser part number 587-305-014-521-207 for accurate sourcing channels.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge connection with a 3.96 mm pitch is required. The vertical orientation and panel mount style suit applications needing fixed structural support. Verify that the target circuit board thickness falls within the specified 1.37 mm to 1.78 mm range. Consider the 14-position count and gold contact finish for durability in industrial or medical environments.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various position counts and mounting styles. The series is characterized by robust construction suitable for harsh environments. The 305-014 variant specifically provides a compact dual-row solution for high-density interconnect needs within the broader family of standard card edge connectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with different position counts or termination styles. Verify mechanical footprint compatibility if considering alternative manufacturers. No specific public substitute part numbers are confirmed for this exact configuration.
