Edgeboard Connectors Overview

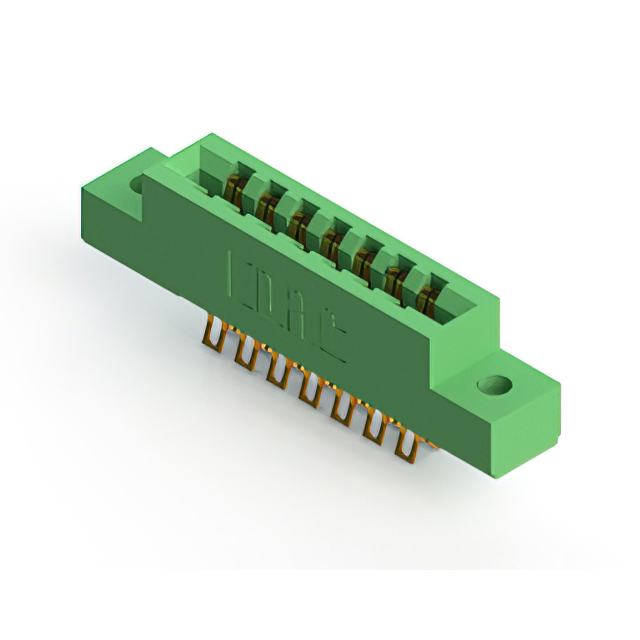

The EDAC Inc. 305-014-555-202 is a dual-row card edge connector with 14 positions and a 0.156-inch (3.96mm) pitch. It features gold-plated copper alloy contacts and a green thermoplastic insulator. Designed for straddle mount installation, it accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Straddle mount design for secure board edge connection
• Gold-plated contacts ensure reliable signal transmission
• Thermoplastic housing provides structural stability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Computer peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 0.062 inches before procurement. Cross-reference the RoHS status with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this model when a dual-row configuration with a 0.156-inch pitch is required for panel or chassis mounting applications. Consider the straddle mount style for enhanced mechanical retention compared to standard through-hole variants. Evaluate the operating temperature range to ensure suitability for the environmental conditions of the final assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles to accommodate diverse interface needs. The 305-014 variant specifically addresses applications requiring a compact dual-row layout with robust contact integrity.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Ensure that any replacement maintains the same 0.156-inch pitch and dual-row configuration. Verify mechanical dimensions and electrical ratings match the original design requirements.
