305-014-555-212

Edgeboard Connectors Overview

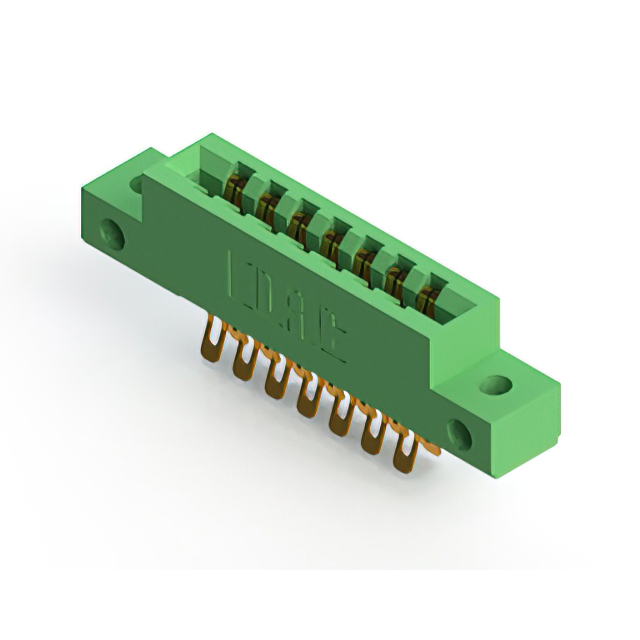

The EDAC Inc. 305-014-555-212 is a standard card edge connector from the 305 series, designed for dual-sided board insertion. It features 14 positions with a 0.156-inch (3.96 mm) pitch and utilizes female contacts. The component supports solder termination and panel mount installation. It operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-sided female contact configuration for secure card edge engagement
• Solder pin termination method ensuring stable electrical connections
• Thermoplastic polyester insulator housing providing durability
• Gold-plated copper alloy contacts for reliable signal transmission

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interface modules
• Computing and data storage hardware backplanes
• Aerospace and defense electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange characteristics. Ensure compatibility with target PCB card thickness specifications before procurement. Confirm regional availability and lead times through authorized distributors as stock levels fluctuate.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, 14-position connector with a 3.96mm pitch is required. Verify that the mating card thickness falls within the specified operational range. Consider the vertical panel mount style and solder termination requirements during mechanical design integration.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles. The 305-014 variant specifically addresses applications needing compact dual-sided connectivity with high reliability in demanding environments.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the EDAC 305 series for alternative configurations. Verify functional equivalence regarding pitch, row count, and mounting style before substituting. Consult official datasheets to ensure mechanical and electrical parameters match the original design intent.
