305-014-556-201

Edgeboard Connectors Overview

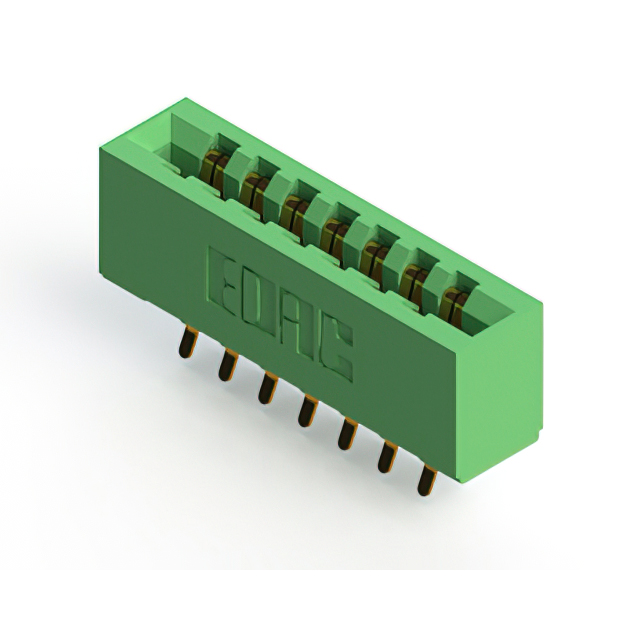

The EDAC Inc. 305-014-556-201 is a standard card edge connector receptacle featuring 14 positions in a dual row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing with a 3.56 mm (0.140 inch) row spacing. Designed for .062 inch nominal thickness printed circuit boards, the unit employs gold-plated copper alloy contacts and a green thermoplastic insulator body. The connector supports a 5 A current rating and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts standard .062 inch nominal thickness PCBs
• Low profile insulator body construction
• Gold-plated copper alloy contacts for reliable conductivity

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Computer peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify that the target application requires a 14-position dual-row connector with 3.96 mm pitch. Confirm compatibility with .062 inch board thickness and panel mounting requirements. Ensure environmental conditions fall within the specified -40°C to +105°C operating range before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, dual-edge female connector is required for 14-position signal routing. The 3.96 mm pitch suits applications needing robust mechanical retention without excessive height. Consider the green color coding if visual identification aids assembly processes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, a family of standard card edge connectors designed for high-reliability interconnects. The series offers various position counts and mounting styles, providing modular solutions for backplane and system-level connections in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 14-position count, 3.96 mm pitch, and dual-row female configuration. Verify identical .062 inch board thickness acceptance and gold plating specifications to ensure functional interchangeability.
