305-014-556-204

Edgeboard Connectors Overview

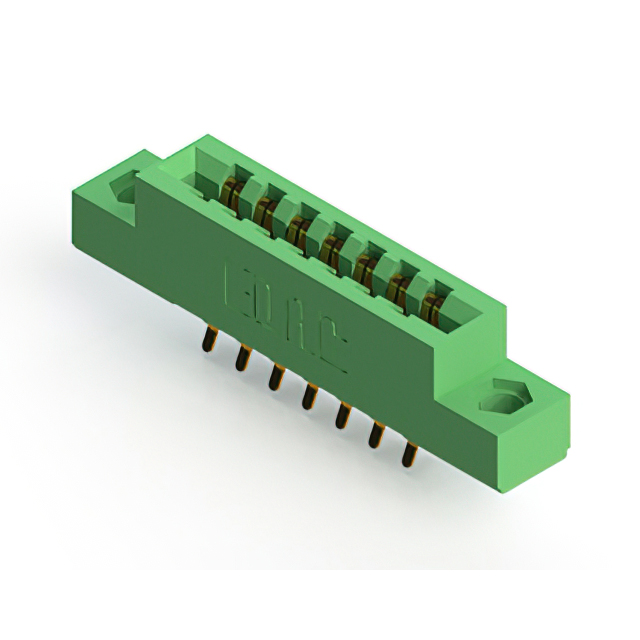

The EDAC Inc. 305-014-556-204 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. It features a dual female configuration with 14 positions and a pitch of 3.96 mm (0.156 inches). The connector supports a PCB thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure low contact resistance and durability. Rated for 5 A current, it employs a solder pin termination type for secure board attachment.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for robust card edge mating
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Solder pin termination ensures stable mechanical and electrical connection to the PCB

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Computing hardware peripheral cards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and insulator material variations. Confirm that the 14-position count aligns with the target PCB design requirements. Ensure compatibility with the specified 3.96 mm pitch and 1.57 mm board thickness before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with a 3.96 mm pitch is required. The 5 A rating suits moderate power applications. Verify that the panel mount or vertical orientation matches the enclosure constraints. Ensure the gold plating specification meets the environmental exposure requirements of the deployment site.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-014-556-204 specifically denotes a 14-position variant. It is engineered for high-reliability connections in demanding environments, utilizing thermoplastic insulators and precise contact geometry.

Edgeboard Connectors Replacement Considerations

Consult EDAC technical support for direct substitutes within the 305 series. Verify dimensional compatibility and electrical ratings for any cross-brand alternatives. No public substitute part numbers are confirmed in available documentation.
