305-014-556-512

Edgeboard Connectors Overview

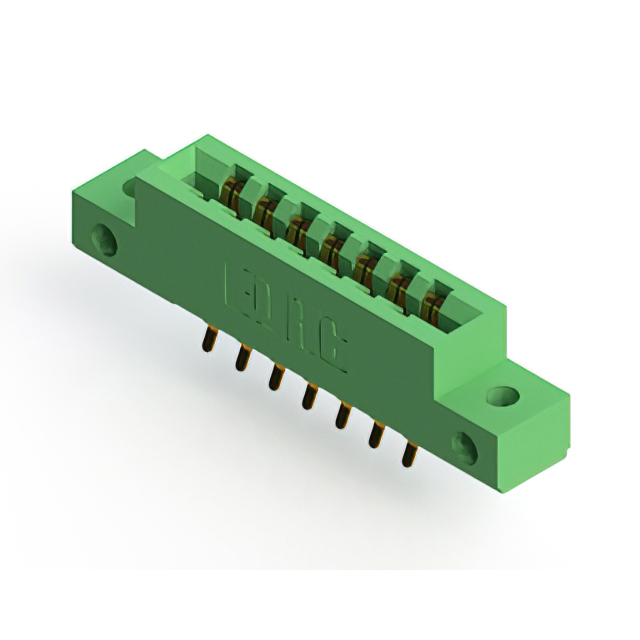

The EDAC Inc. 305-014-556-512 is a standard card edge connector from the 305 series, designed for panel mount applications. It features a dual female configuration with 14 positions and a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. It supports solder pin termination and accommodates board thicknesses between 1.37 mm and 1.78 mm. The unit operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for non-specified card edge boards
• Gold-plated copper alloy contacts for reliable signal transmission
• Thermoplastic polyester insulation providing structural stability
• Panel mount installation with vertical orientation

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to ensure compatibility with required flange characteristics and terminal styles. Confirm that the selected variant matches the intended PCB thickness and mounting constraints. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current availability and compliance status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided card edge interface with a 3.96 mm pitch is required for panel-mounted assemblies. Ensure the mating card thickness falls within the specified 1.37 mm to 1.78 mm range. Consider the vertical mounting style and solder pin termination method for integration into the target circuit board layout. Verify environmental ratings align with operational temperature requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which offers various configurations for standard card edge applications. The series provides options for different position counts and mounting styles. The 305-014-556-512 specifically addresses needs for 14-position dual-edge connections in industrial and commercial electronics where robust panel mounting is necessary.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or flange types. Verify mechanical footprint compatibility before replacing with other manufacturers' products. Ensure electrical specifications such as current rating and insulation resistance match the original design requirements.
