305-016-500-578

Edgeboard Connectors Overview

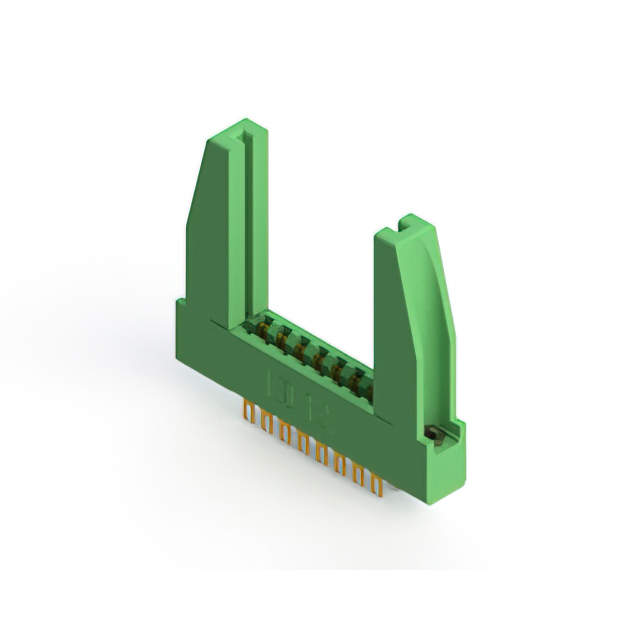

The EDAC Inc. 305-016-500-578 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features 16 positions with a 3.96 mm (0.156 inch) pitch and supports a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts with a solder lug termination type. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from green thermoplastic material, ensuring reliable electrical performance in vertical installation configurations.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
• Solder lug termination provides secure mechanical connection to printed circuit boards
• Thermoplastic housing offers durable insulation and environmental protection

Edgeboard Connectors Applications

• Industrial control system interconnections
• Panel-mounted electronic equipment interfaces
• Telecommunications hardware connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and housing material variations. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through manufacturer datasheets. Validate that the solder lug termination style matches assembly requirements. Cross-reference part numbers with authorized distributor catalogs to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount card edge connector with 16 positions is required. The 3.96 mm pitch accommodates standard board layouts. Gold plating suits environments requiring low contact resistance. Verify thermal ratings align with operational conditions. Consider the solder lug termination method for robust mechanical stability during vibration.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles. The 305-016 variant specifically addresses compact interface needs. It complements other EDAC products by providing standardized dimensions and reliable performance for general-purpose electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult EDAC official substitution guides for direct replacements. Verify pin count, pitch, and termination style match exactly. Ensure housing material and current ratings meet or exceed original specifications. Check for compatible polarizing key options if required.
