305-016-520-578

Edgeboard Connectors Overview

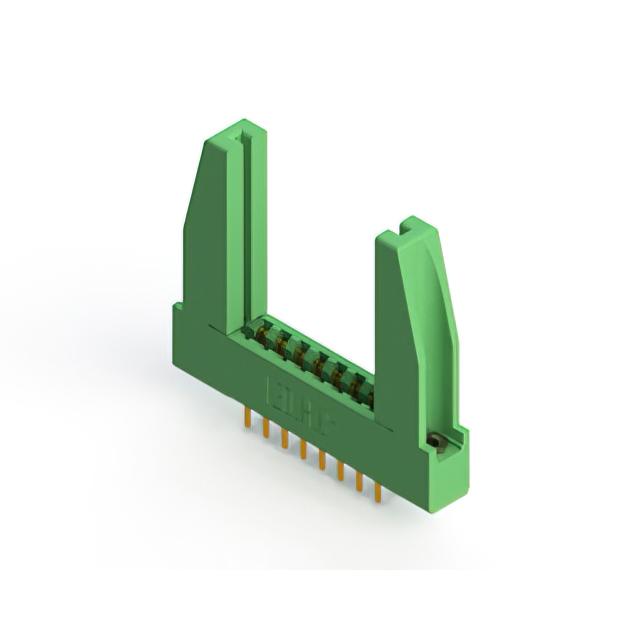

The EDAC Inc. 305-016-520-578 is a standard card edge connector from the 305 series, designed for panel mount and through-hole installation. It features 16 positions with a 3.96 mm (0.156 inch) pitch. The connector utilizes copper alloy contacts with gold plating and accepts dual-edge female connections. It supports board thicknesses of 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensuring reliable conductivity
• Panel mount design with vertical orientation for structural stability
• Thermoplastic polyester insulation housing for durability

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Embedded computing hardware interconnects
• Test and measurement instrument signal routing

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and flange characteristics. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference manufacturer part numbers with distributor listings to confirm current availability status and RoHS compliance details.

Edgeboard Connectors Selection Notes

Select this component when a 16-position dual-edge connector with a 3.96 mm pitch is required. Consider the 5A current rating and operating temperature range for environmental suitability. Verify that the panel mounting style aligns with the mechanical enclosure design requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options. The 305-016 variant specifically provides a compact solution for applications requiring moderate I/O density with robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Consult EDAC official substitution guides for equivalent parts within the 305 or 315 series. Verify dimensional compatibility and electrical ratings before considering alternative manufacturers.
