305-016-521-507

Edgeboard Connectors Overview

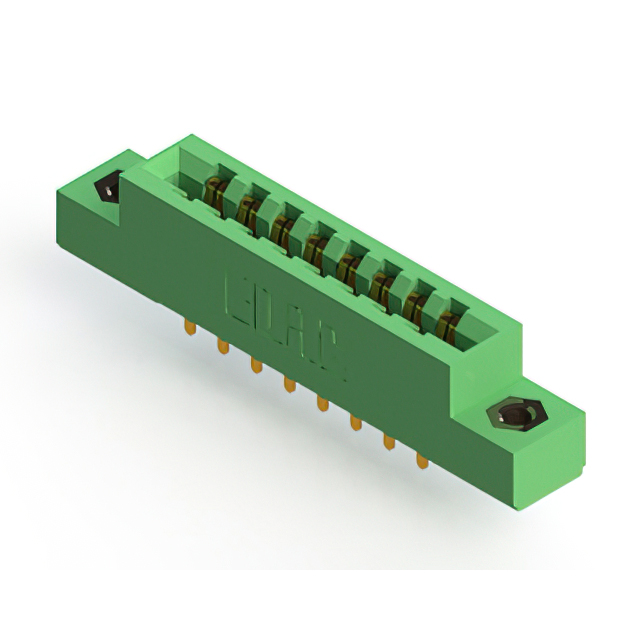

The EDAC Inc. 305-016-521-507 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features a 16-position configuration with a 3.96 mm (0.156 inch) pitch across two rows. The unit utilizes gold-plated copper alloy contacts and a green thermoplastic insulator. Rated for 5 A current at temperatures ranging from -40°C to +105°C, it employs solder pin termination and panel mount installation.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for non-specified dual-edge boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic housing provides structural integrity within specified temperature ranges

Edgeboard Connectors Applications

• Panel-mounted electronic interconnects
• Dual-edge circuit board connections
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness, insulation color, and mounting hardware specifications. Ensure compatibility with target PCB edge thickness tolerances before procurement. Confirm RoHS compliance status through the manufacturer's latest environmental declarations.

Edgeboard Connectors Selection Notes

Select this component when a 16-position vertical interface is required. Verify that the 3.96 mm pitch aligns with the target PCB layout. Confirm that the panel mount style suits the enclosure design. Check that the operating temperature range meets the application environment requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of card edge connectors. The series offers various position counts and mounting options. It is categorized under headers and standard card edge connectors. The product line supports diverse industrial and commercial interconnect needs.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305/315/355 Series Ordering Guide for verified substitute part numbers. Cross-reference position count, pitch, and termination type to ensure functional equivalence.
